Honeywell T6169A4019 Honeywell T6169A4019/U T6169A Thermometer

Honeywell T6169A4019/U T6169A Thermometer

SKU: 376147

This product is not currently available for purchase.

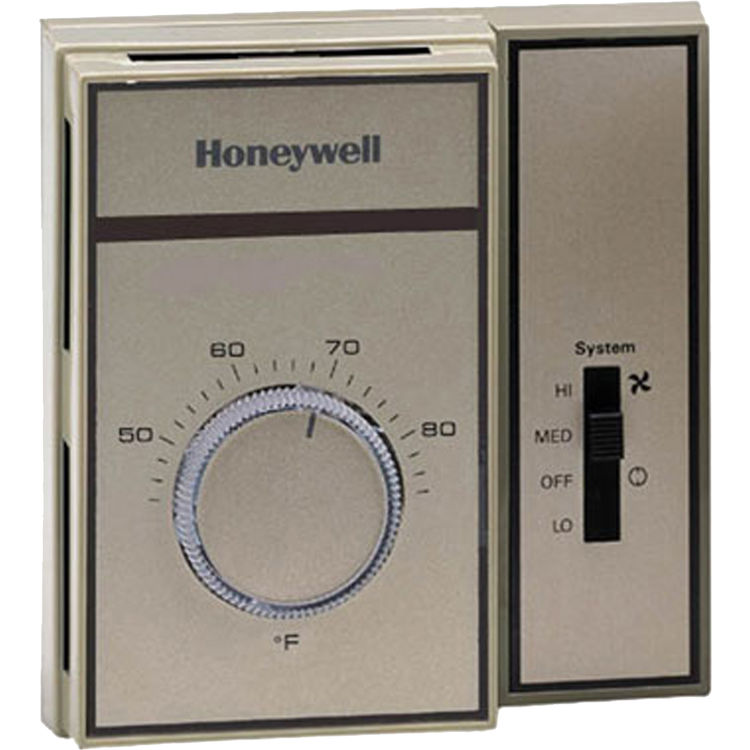

About the Honeywell T6169A4019/U T6169A Thermometer

The Honeywell T6169A4019/U is a fan coil thermostat. It is designed to control line voltage valves and blower motors on fan coil units in automatic or manual changeover. It features a hi, low, med, and off switch position for quick and easy temperature control. This thermostat has a temperature rating from 44 to 86 degrees Fahrenheit. In addition to that, it can be mounted on a 2 x 4 inches single or double-ganged outlet box.

Honeywell is well-known for manufacturing high-performance products and providing reliable solutions for residential and commercial building needs. Here at PlumbersStock, we carry Honeywell's great products like this one at very affordable prices. Grab it here at PlumbersStock.

Manufacturer: Honeywell
Product: Thermostat
Color: Tan
Type: Non Programmable
Shape: Rectangle
Other Info: UL Listed
Electrical Voltage: 120 VAC
Width: 4-1/2"
Depth: 1-7/8''
Height: 4-5/8"
Mpn # T6169A4019
Weight 1.86 lbs.
  • UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg
  • 120 to 277 Vac
  • HI-OFF-MED-LO
  • 2 F
  • Tan
  • No thermometer
  • Fast split-core installation eliminates the need to remove conductors saves time and labor
  • 44 F to 86 F
  • 2 pipe fan coil, seasonal auto changeover, constant or cycled fan
  • 4 5/8 in. high x 4 1/2 in. wide x 1 7/8 in. deep. + 5/8 in projection into junction box
  • 134 mm high x 114 mm wide x 47 mm deep + 15 mm projection into junction box
  • Mounts on 2 in. x 4 in. (50mm x 75 mm) single or double-ganged vertically-oriented outlet box.
  • 8.0 AFL / 48 ALR / 13A resistive @ 120 Vac; 4.4 AFL / 26.4 ALR / 7.5A resistive @208 Vac; 4.0 AFL / 24 ALR / 6.5A resistive @240 Vac; 3.3 AFL / 19.8 ALR 5.5A resistive @277 Vac
  • 50 Hz; 60 Hz
  • File No. E4436, Guide No. XAPX
  • File No. LR1322
