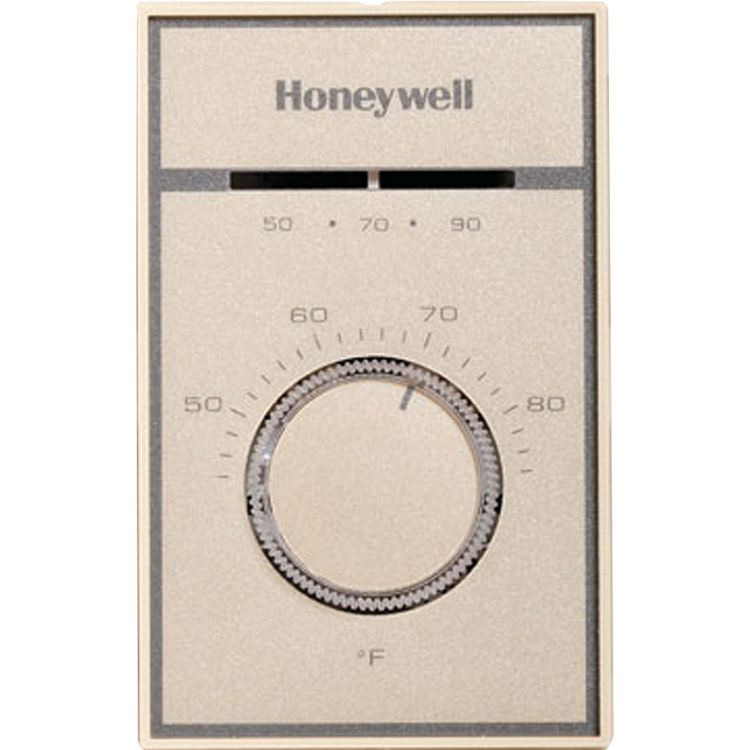

Honeywell T651A3018/U T651A Thermometer

Name: Honeywell T651A3018/U T651A Thermometer
Brand: Honeywell
SKU: 27668
Price: 124.54 USD
Availability: InStock

SKU: 27668

This product is not currently available for purchase.

About the Honeywell T651A3018

About the Honeywell T651A3018/U T651A Thermometer

Honeywell T651A3018/U T651A Thermometer. Light and Medium Duty Line Voltage Thermostats, control line voltage valves, motors, contractors, for multiple heating/cooling systems.

Product Details

Manufacturer:	Honeywell
Product:	Thermostat
Temperature Range:	45 – 86 °F / 7 – 30 °C
Amperage:	5.5 amps
Mpn #	T651A3018
Weight	0.80 lbs.

Product Features

UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg
Super Tradeline
Flylead
120 to 227 Vac
Vapor filled dual diaphragm
2 F
Champagne gold face-plate with beige cover
SPDT - breaks heating and makes cooling on temperature rise
44 F to 86 F
Heating and cooling
4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.)
115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm)
Vertical scaleplate with thermometer, horizontal scaleplate with no thermometer, range stops and locking screws, wall plate, and high accuracy Dual Diaphragm sensor
9.8 FLA / 58.8 LRA @ 120 Vac; 5.6 FLA / 33.6 LRA @ 208 Vac; 4.9 FLA / 29.4 LRA @240 Vac; 4.2 FLA / 25.2 LRA @277 Vac; 22 A @ 120 - 240 Vac Resistive; 19 A @ 277 Vac Resistive.
50 Hz; 60 Hz
Listed: File No. E4436, Guide No. XAPX, Guide No. XAPX.
CSA Certified, File No. LR1322

Resources

Specification Sheet
