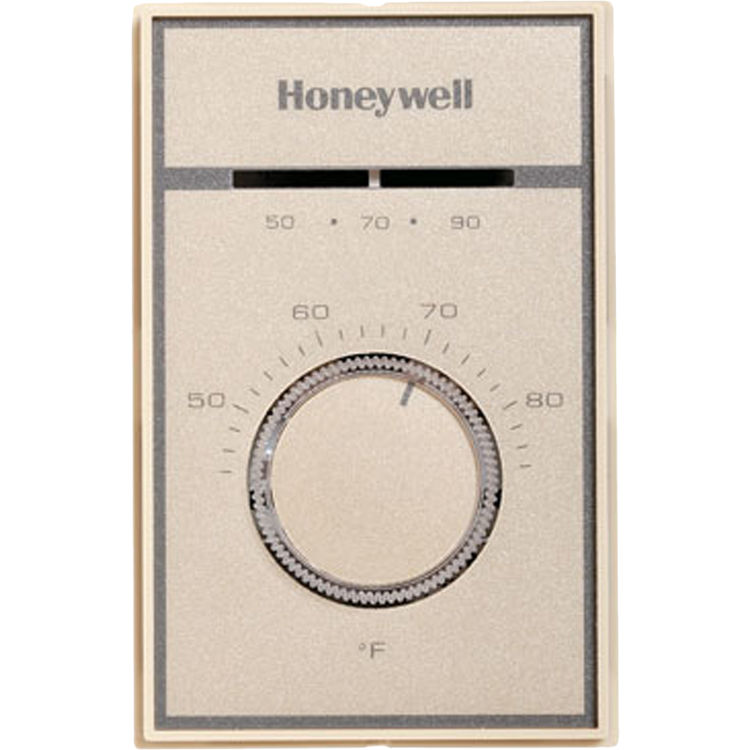

Honeywell T651A3026/U Medium Duty Line Voltage Thermostat

SKU: 376169

Save 54% · Retail: $195.99

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Illinois Warehouse
Ships in 4-6 Days
$89.51/ea 5
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell T651A3026

Honeywell T651A3026/U Medium Duty Line Voltage Thermostat. Light and Medium Duty Line Voltage Thermostats, control line voltage valves, motors, contractors, for multiple heating/cooling systems.

Product Details

Manufacturer: Honeywell
Style: Medium
Mpn # T651A3026
Weight 1.03 lbs.

Product Features

  • UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg
  • Flylead
  • 120 to 227 Vac
  • heating and cooling
  • Vapor filled dual diaphragm
  • 1 C
  • Champagne gold face-plate with beige cover
  • SPDT - breaks heating and makes cooling on temperature rise
  • 7 C to 28 C
  • Heating and cooling Celsius
  • 4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.)
  • 115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm)
  • Vertical scaleplate with thermometer, range stops and locking screws, wall plate, high accuracy Dual Diaphragm sensor.
  • 9.8 FLA / 58.8 LRA @ 120 Vac; 5.6 FLA / 33.6 LRA @ 208 Vac; 4.9 FLA / 29.4 LRA @240 Vac; 4.2 FLA / 25.2 LRA @277 Vac; 22 A @ 120 - 240 Vac Resistive; 19 A @ 277 Vac Resistive.
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX, Guide No. XAPX.
  • CSA Certified, File No. LR1322
