Honeywell T678A1163 Honeywell T678A1163/U Remote Temperature Controller

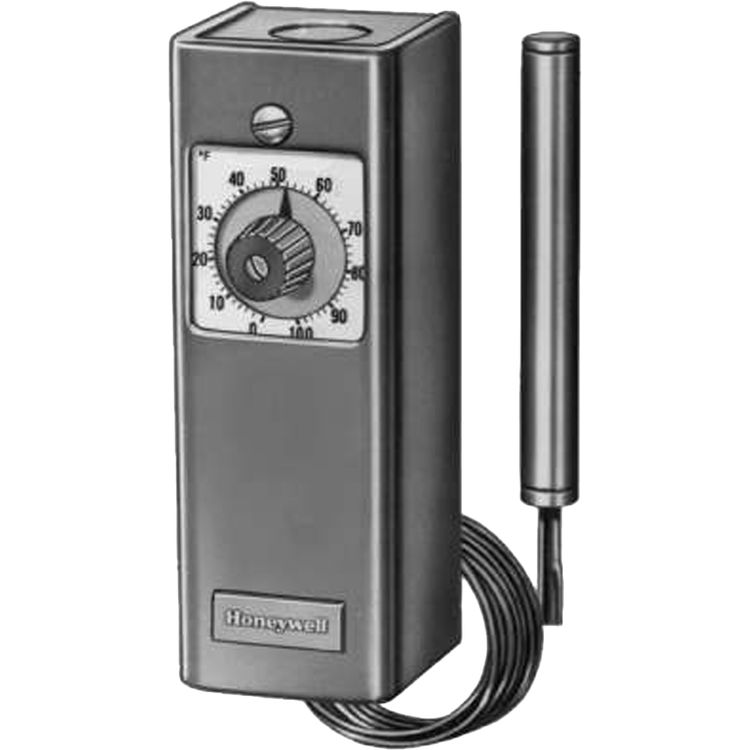

Honeywell T678A1163/U Remote Temperature Controller

SKU: 376190

This product is not currently available for purchase.

About the Honeywell T678A1163/U Remote Temperature Controller

Honeywell T678A1163/U Remote Temperature Controller. Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.

Product: Temperature Control
  Controller
Manufacturer: Honeywell
Style: Remote Control
Mpn # T678A1163
Weight 2.30 lbs.
  • UN 1993 Flammable liquid, n.o.s.
  • 120 Vac or 240/277 Vac
  • -15 C to +35 C
  • 5 F to 95 F
  • 125 F Maximum
  • 52 C Maximum
  • Remote bulb
  • relay
  • 2 SPDT switch contacts
  • 1
  • Copper bulb
  • Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
  • 20 ft
  • 6.1 m
  • 1/2 in. x 4 3/16 in.
  • 13 mm dia. x 106 mm long
  • 3 F fixed
  • 1.7 C fixed
  • 1.7 C to 5.6 C adjustable
  • 3 F to 10 F adjustable
  • 5 5/8 in. high x 2 in. wide x 2 5/8 in. deep
  • 143 mm high x 51 mm wide x 67 mm deep
  • Celsius model; maximum connected load = 2000VA
  • 50 Hz; 60 Hz
  • UL Listed: E4436, Vol. 4, Sec. 11, Guide XAPX
  • CSA Listed: Report -1
  • 120 Vac-- 8.0 AFL, 48.0 ALR; 240 Vac-- 5.1 AFL, 30.6 ALR; 277 Vac--4.2 AFL, 25.2 ALR
