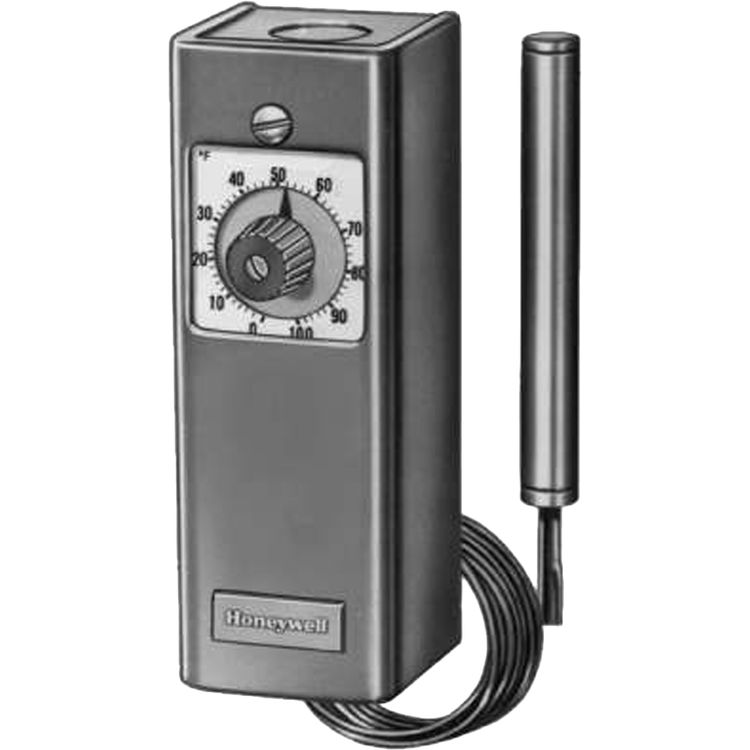

Honeywell T678A1361 Honeywell T678A1361/U Remote Temperature Controller, 55°F-175°F Range

Honeywell T678A1361/U Remote Temperature Controller, 55°F-175°F Range

SKU: 376191

This product is not currently available for purchase.

About the Honeywell T678A1361/U Remote Temperature Controller, 55°F-175°F Range

Save on the Honeywell T678A1361/U Remote Temperature Controller (55°F-175°F Range, 2 SPDT, Copper Bulb, 20 ft. Capillary, Switch: 3.6°F Fixed/Interstage: 3.6°F-12°F Adj.). Remote bulb thermostats regulate the temperature of air or liquids in ducts, pipes, tanks, and boilers.

Product: Temperature Control
  Controller
Manufacturer: Honeywell
Style: Remote Control
Mpn # T678A1361
Weight 2.50 lbs.
  • Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
  • 13 C to 79 C
  • 55 F to 175 F
  • 200 F Maximum
  • 93 C Maximum
  • Remote bulb
  • relay
  • 2 SPDT switch contacts
  • Copper bulb
  • 20 ft
  • 5 5/8 in. high x 2 in. wide x 2 5/8 in. deep
  • 6.1 m
  • 1/2 in. x 3 9/16 in.
  • 13 mm x 90 mm
  • 3.6 F fixed
  • 2.0 C fixed
  • 2.0 C to 6.7 C adjustable
  • 3.6 F to 12 F adjustable
  • 143 mm high x 51 mm wide x 67 mm deep
  • maximum connected load = 2000VA
  • 50 Hz; 60 Hz
  • UL Listed: E4436, Vol. 4, Sec. 11, Guide XAPX
  • CSA Listed: Report -1
  • 120 Vac-- 8.0 AFL, 48.0 ALR; 240 Vac-- 5.1 AFL, 30.6 ALR; 277 Vac--4.2 AFL, 25.2 ALR
  • 120 Vac or 240/277 Vac
