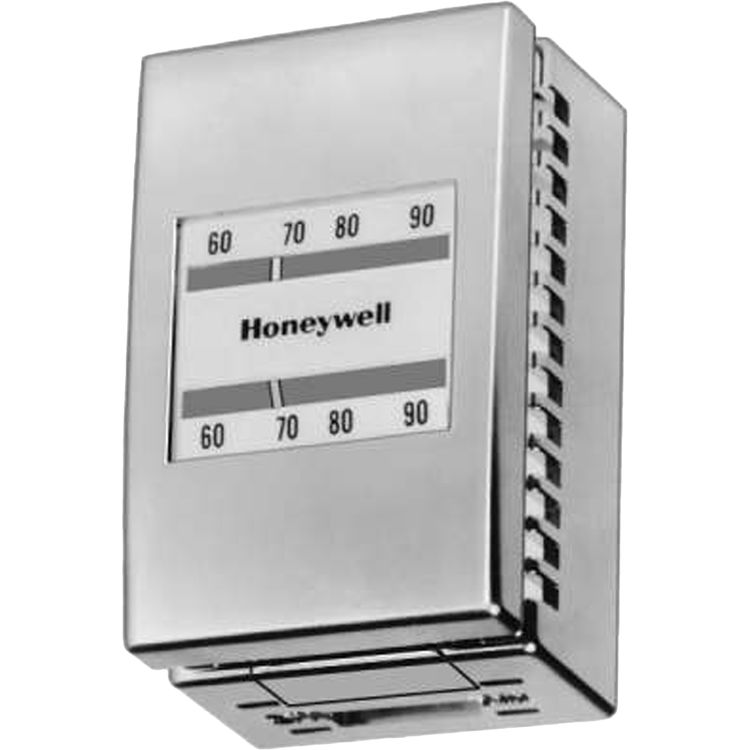

Honeywell TP971C2017 Direct Acting-Heating Pneumatic Thermostat

SKU: 376463

$218.68/ea
Save 56% · Retail: $491.73

  Available to Ship in 3-4 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$218.68/ea

About the Honeywell TP971C2017

Honeywell TP971C2017 Pneumatic Thermostat Direct Acting-Heating is a Pneumatic thermostat with night setback used for proportional level control of pneumatic valves and damper actuators. It is also used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Honeywell TP971C2017 Pneumatic Thermostat Direct Acting-Heating has an Adapter plate in thermostat kits that covers existing thermostat watermark. It also has a Backplate that has molded air connections and no separate fittings needed. Honeywell TP971C2017 Pneumatic Thermostat Direct Acting-Heating has a Universal Locking cover with satin chrome finish and horizontal, vertical, or blank window options. It is recommended for home safety use and is a user friendly device that fits in specific applications and is Ideal for office areas, lobbies, supermarkets, restaurants, clinics, hospitals, and convenience stores. Honeywell is the global leader in HVAC (heating, Ventilation, Air Conditioning) product. Honeywell invents and manufactures product for the HVAC industry. They master new technologies that address the tough challenges such as safety, security, and energy efficiency. As a world leader they have an unrelenting focus on quality, delivery, value and technology in every product they make. Honeywell is a fortune 100 company that has over 130,000 employees including nearly 20,000 engineers and scientists

Product Details

Mpn # TP971C2017
Shipping Dimensions 1.0" x 2.0" x 3.0"
Weight 0.19 lbs.

Product Features

  • ApplicationWall Thermostat, Day/Night operation
  • Airflow Usage0.011 scfm (5.2 mL/s)
  • Dimensions (in.)3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
  • Dimensions (mm)83 mm high x 51 mm wide x 41 mm deep
  • Maximum Safe Operating Pressure (psi)25 psi
  • Maximum Safe Operating Pressure (kPa)170 kPa
  • Temperature Range (C) 38 C maximum
  • Mounting Wall mount
  • Setpoint Temperature Range (C)Day: 15 C to 30 C, Night: 10 C to 27 C
  • Shipping and Storage Temperature Range (F)150 F maximum
  • Shipping and Storage Temperature Range (C)66 C maximum
  • Sensor Element Bimetal
  • Throttling Range (F) 2 F to 10 F
  • Throttling Range (C) 1 C to 5 C
  • Action Direct Acting Heating, two temp.
  • Setpoint Day/Night
  • Number of Pipes 3
  • Changeover Pressure (psi) Day 13 psi, Night 18 psi
  • Changeover Pressure (kPa) Day 90 kPa, Night 124 kPa
  • Durable TP970 series thermostat Pilot operated for high capacity.
  • Direct Acting (DA) and Reverse Acting (RA) models are available.
  • Three-pipe thermostats are available for unit ventilator applications where the outdoor damper must operate when the thermostat is manually set to day operation.
  • Adapter plate in thermostat kits covers existing thermostat watermark.
  • Backplate has molded air connections-no separate fittings needed.
  • Universal Locking cover with satin chrome finish and horizontal, vertical, or blank window options-other covers available.
