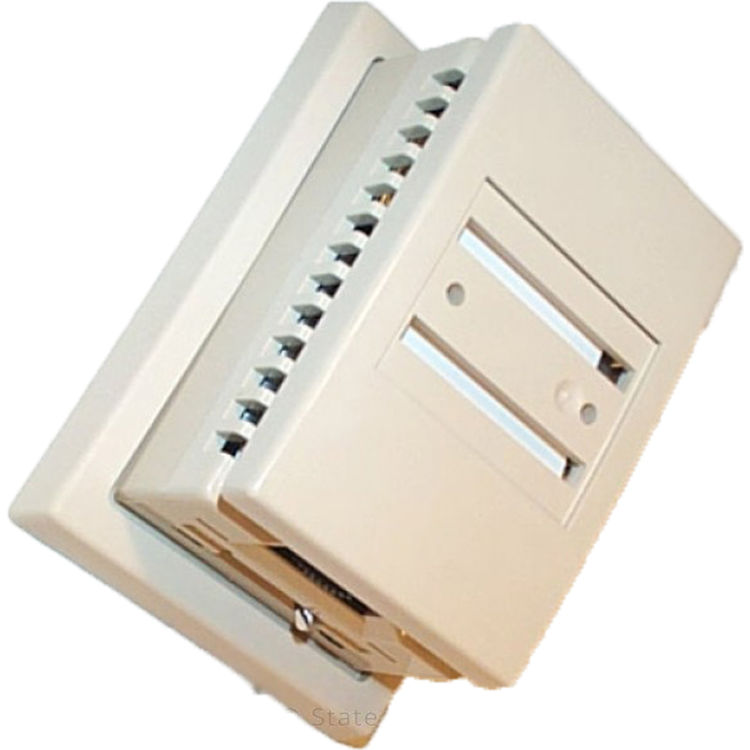

Honeywell TP973B2066 Honeywell TP973B2066/U Pneumatic Thermostat Reverse Acting

Honeywell TP973B2066/U Pneumatic Thermostat Reverse Acting

SKU: 376478

This product is not currently available for purchase.

About the Honeywell TP973B2066/U Pneumatic Thermostat Reverse Acting

Honeywell TP973B2066/U Pneumatic Thermostat - Reverse Acting. This Single temperature, low capacity, pneumatic thermostat provides control of pneumatic valves & damper actuators in HVAC systems. Replacement Kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic thermostats.

Manufacturer: Honeywell
Style: Pneumatic
Mpn # TP973B2066
Weight 0.19 lbs.
  • Wall Thermostat, Single Temperature
  • Wall mount
  • N/S
  • 59 F to 90 F
  • 150 F maximum
  • 66 C maximum
  • Bimetal
  • 2 F to 10 F
  • 1 C to 5 C
  • Reverse Acting
  • Single
  • 0.011 scfm (5.2 mL/s)
  • 1 or 2
  • 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
  • 83 mm high x 51 mm wide x 41 mm deep
  • 25 psi
  • 170 kPa
  • 100 F
  • Order Cover Separately
  • For one-pipe order an external 0.005 in. restriction
