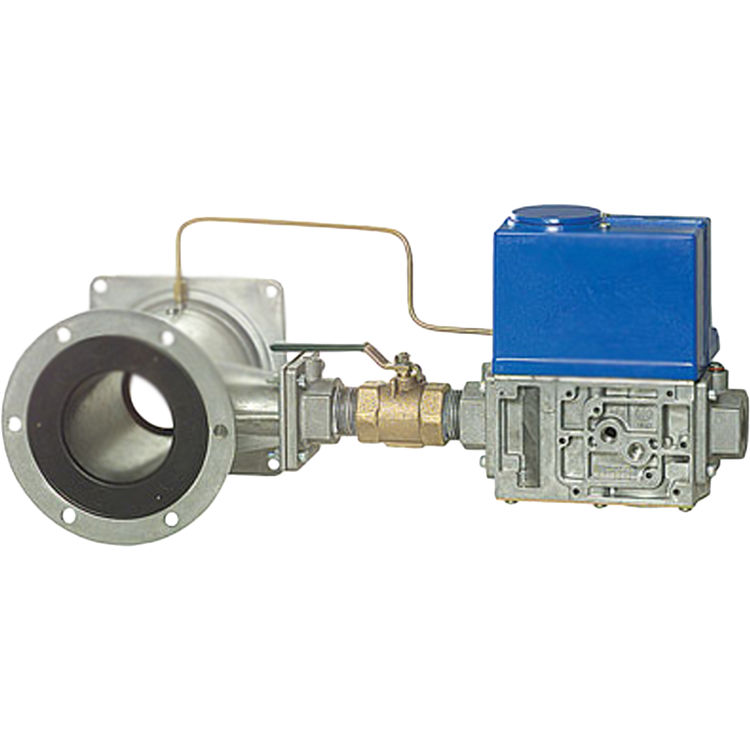

Honeywell V4730C1014-0000 Regulated Gas Valve

SKU: 376615


  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell V4730C1014-0000

Honeywell V4730C1014-0000 Regulated Gas Valve. the Honeywell V4730C1014-0000 3/4" is a Straight flange 120 Vac Gas/Air Servo Regulated Gas Valves.

Product Details

Manufacturer: Honeywell
Use: Gas
Mpn # V4730C1014-0000
Weight 5.70 lbs.

Product Features

  • 0.5 psi (CSA approved),1.45 psi for 120V; 1 psi for 24V (UL approved)
  • 5 F to 140 F
  • -15 C to +60 C
  • Gas Appliance Directive: 90.396/EEC,PIN: 0063AT1198,Low Voltage Directive: 73/23/EEC,Electro Magnetic Compatibility Directive: 89/336/EEC
  • 1/8 in. (3mm) NPT pressure taps at inlet and outlet flanges. Six flange pressure taps connections are provided at the main body to mount either a pressure switch (low or high) or a Valve Proving System (VPS).
  • V1 Current Rating-- 0.16A; V2 Current Rating-- 0.16A; V1 + V2 Current Rating-- 0.32A
  • Straight flange
  • 3/4 in.
  • Natural Gas 0.64 43-300 KW
  • Natural Gas 0.64 146-1024 kBtuh
  • Dead time maximum: 1 second; First valve--
  • Mesh screen filter and 32006652-002 Flange kit. (Kit includes 1 pipe adapter, 1 O-ring, 4 mounting screws, 1 DIN connector and wiring harness kit.)
  • 200 mbar (UL approved) 100 mbar for 120V; 69 mbar for 24V (UL approved),35 mbar (CSA approved)
  • Class H insulation system
  • Nat. Gas (Delta P= 1 in. w.c.)-- 1024 cfh
  • Body: Aluminum alloy, die-cast
  • The minimum load for which the system can be used is 14-17% of the reference load, which equals a minimum pressure differential of 0.2 in. wc (50 Pa) of the 1:1 venturi/servo regulator gas control.
  • 50 Hz; 60 Hz
  • File No. MH18476
  • File: Certificate No: 158158-1227192
  • Standard DIN plug connector with 36 in. (914 mm) leadwires, included.
  • 120 Vac (+10%,-15%)
