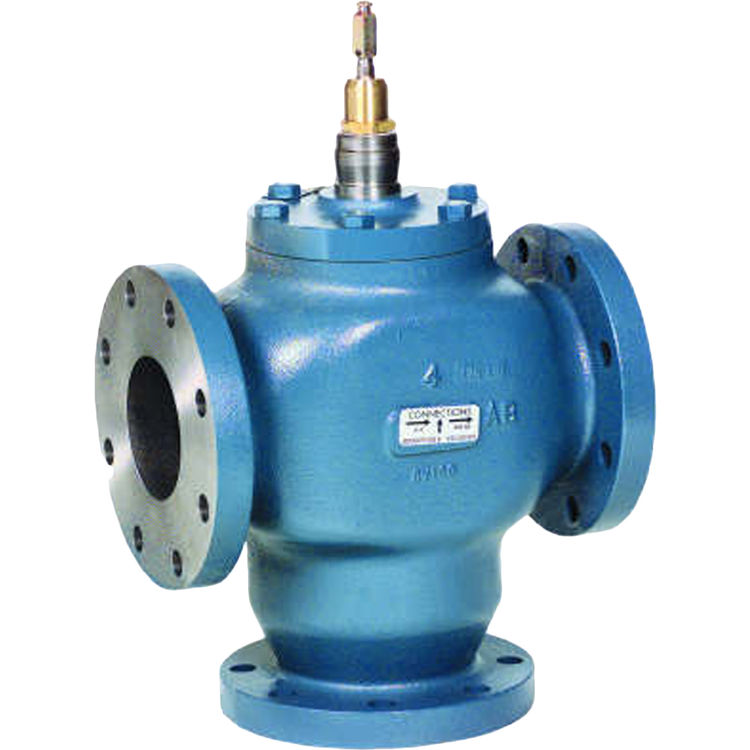

Honeywell V5013C1035/U 3-Way 5 inch flanged Globe Valve

SKU: 376661

$11,304.00/ea
 Free Shipping!
Save 58% · Retail: $26,755.02

In Stock and Ready to Ship




Ships From Price Qty
Massachusetts Warehouse
Ships in 1-4 Days
$11,304.00/ea 2
Illinois Warehouse
Ships in 4-6 Days
$11,304.00/ea 1
Order From Manufacturer
Available to Ship in 3-4 weeks
$11,304.00/ea

About the Honeywell V5013C1035

The Honeywell V5013C1035/U 3-Way 5 inch flanged Globe Valve. This valve is made with Bronze body with female, screwed-end connections or cast iron body with flanged-end connections. It is a Mixing or diverting valve with stainless steel stem and replaceable seats. It has a Constant total flow throughout full plug travel and a spring loaded, self-adjusting packing. This Honeywell V5013C1035/U 3-Way 5 inch flanged Globe Valve also provide proportional or two-position control of hot or chilled water in heating or cooling systems. This Valve utilizes direct mounting valve actuators, Q5020/Q5022 linkages with Direct Coupled Actuators, or Pneumatic Valve Actuators to operate the valve. It can be used for mixing service (V5013B and F) to direct flow from one of two inlets to a common outlet or for diverting service (V5013C) to direct flow from a common inlet to one of two outlets. The Honeywell V5013C1035/U 3-Way 5 inch flanged Globe Valve is a Class IV (0.01% of Cv) leakage rating and is suitable for pneumatic or electric/electronic actuation. Honeywell is the global leader in HVAC (heating, Ventilation, Air Conditioning) product. Honeywell invents and manufactures product for the HVAC industry. . They have the world class products and services and solutions that work in million homes, buildings, and hundreds of gas and electric utilities worldwide.

Product Details

Product: Globe
Manufacturer: Honeywell
Style: 3 Way
Connection Type: Flanged
Mpn # V5013C1035
Shipping Dimensions 15.0" x 10.0" x 15.0"
Weight 0.60 lbs.
Shipping Dimensional Weight 12.76 lbs.

Product Features

  • 15 7/8 in. high x 10 in. wide x 15 in. deep
  • Three-way
  • 5 in.
  • DN125
  • 1-7/8 in.
  • For Quiet Water Service--20 psid
  • For Quiet Water Service--138 kPa
  • 250 Cv
  • 214 kvs
  • Stem up increases AB to A flow
  • Globe Valve
  • 402 mm high x 253 mm wide x 380 mm deep
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Cast Iron
  • Bronze
  • Stainless Steel
  • Linear (constant total)
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • 1 1/2 in.
  • 38 mm
  • 150 psi at 240 F water
  • 47.6 mm
  • Teflon Cone
  • 1034 kPa at 115 C water
  • ML7421B; ML6421B; Q5001/Modutrol IV Motor
  • Diverting
  • 40 F to 250 F
  • 4 C to 121 C
  • Flanged
