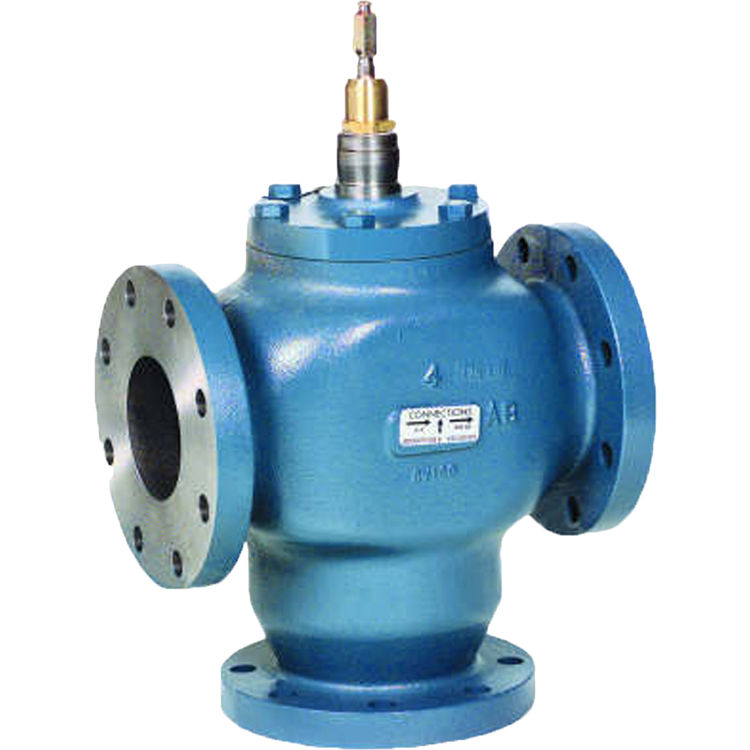

Honeywell V5013C1043 Honeywell V5013C1043/U 3-Way Flanged Globe Valve

Honeywell V5013C1043/U 3-Way Flanged Globe Valve

SKU: 376662

This product is not currently available for purchase.

About the Honeywell V5013C1043/U 3-Way Flanged Globe Valve

The Honeywell V5013C1043/U 3-Way 6 inch flanged Globe Valve. This valve is made with bronze body with female, screwed-end connections or cast iron body with flanged-end connections. It is a mixing or diverting valve with stainless steel stem and replaceable seats. It has a constant total flow throughout full plug travel and a spring loaded, self-adjusting packing. This Honeywell V5013C1043/U 3-Way 6 inch flanged Globe Valve also provide proportional or two-position control of hot or chilled water in heating or cooling systems. This Valve utilizes direct mounting valve actuators, Q5020/Q5022 linkages with Direct Coupled Actuators, or Pneumatic Valve Actuators to operate the valve. It can be used for mixing service (V5013B and F) to direct flow from one of two inlets to a common outlet or for diverting service (V5013C) to direct flow from a common inlet to one of two outlets. The Honeywell V5013C1043/U 3-Way 6 inch flanged Globe Valve is a Class IV (0.01% of Cv) leakage rating and is suitable for pneumatic or electric/electronic actuation. Honeywell is the global leader in HVAC (Heating, Ventilation, Air Conditioning) product. Honeywell invents and manufactures product for the HVAC industry. . They have the world class products and services and solutions that work in million homes, buildings, and hundreds of gas and electric utilities worldwide.

Product: Globe
Style: 3 Way
Connection Type: Flanged
Manufacturer: Honeywell
Mpn # V5013C1043
Weight 0.75 lbs.
  • 17 15/16 in. high x 11 in. wide x 16 1/2 in. deep
  • Three-way
  • 6 in.
  • DN150
  • 1-7/8 in.
  • For Quiet Water Service--20 psid
  • For Quiet Water Service--138 kPa
  • 360 Cv
  • 308 kvs
  • Stem up increases AB to A flow
  • Globe Valve
  • 455 mm high x 279 mm wide x 418 mm deep
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Cast Iron
  • Bronze
  • Stainless Steel
  • Linear (constant total)
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • 1 1/2 in.
  • 38 mm
  • 150 psi at 240 F water
  • 47.6 mm
  • Teflon Cone
  • 1034 kPa at 115 C water
  • ML6421B; ML7421B; Q5001/Modutrol IV Motor
  • Diverting
  • 40 F to 250 F
  • 4 C to 121 C
  • Flanged
