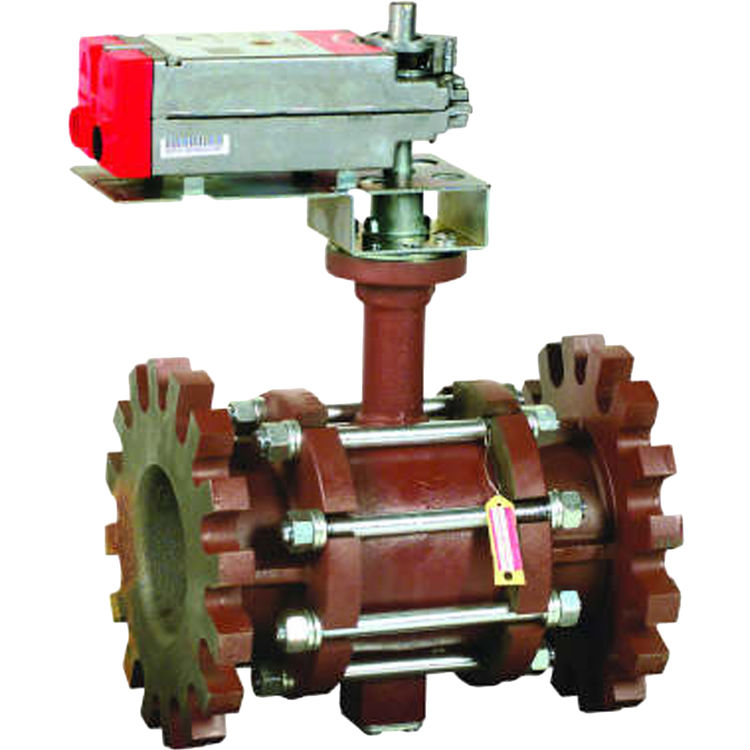

Honeywell VBF2J21SRB Two-Way Flange Actuated Control Ball Valve

SKU: 376781
Minimum Quantity: 1

$1,292.69/ea Free Shipping!
Save 59% · Retail: $3,182.01

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,292.69/ea

About the Honeywell VBF2J21SRB

The Honeywell VBF2J21SRB 4 In. VBF2 Two-Way Ball Valve. These Assemblies with and without actuators, control hot and chilled water with glycol solutions up to 50% in closed loop (HVAC) systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Product: Globe
Manufacturer: Honeywell
Material: Cast iron
Use: Water
Type: Ball Valve
Style: 2 Way
Size:
Electrical Voltage: 24 Volt
Connection Type: Flanged
Trade Tools: HVAC
Mpn # VBF2J21SRB
Weight 70.00 lbs.

Product Features

  • Sizes from 4 to 6 inch with ANSI Class 125 flanged connections.
  • Wide range of Cv choices from 91 to 650.
  • Valve ball and stem 316 stainless steel.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Option of four actuator mounting positions on the valve.
