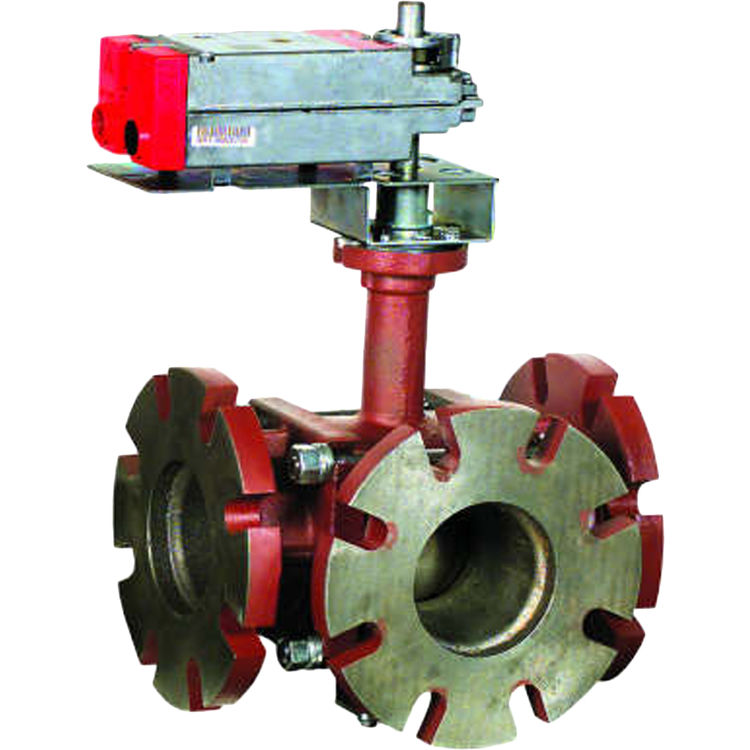

Honeywell VBF3J21S0C Honeywell VBF3J21S0C Three-Way Flange Actuated Control Ball Valve

Honeywell VBF3J21S0C Three-Way Flange Actuated Control Ball Valve

SKU: 376911

This product is not currently available for purchase.

About the Honeywell VBF3J21S0C Three-Way Flange Actuated Control Ball Valve

Honeywell VBF3J21S0C Three-Way Flange Actuated Control Ball Valve. These 4 In. VBF3 Three-Way Ball Valve Assemblies, with and without actuators, control hot and chilled water with glycol solutions up to 50% in closed-loop heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product: Globe
Manufacturer: Honeywell
Use: Water
Style: 3 Way
Electrical Voltage: 12 Volt
Connection Type: Flanged
Trade Tool Type: HVAC
Mpn # VBF3J21S0C
Weight 1.00 lbs.
  • Sizes from 4 to 6 inch with ANSI Class 125 flanged connections.
  • Option of four actuator mounting positions on the valve.
  • Wide range of Cv choices from 91 to 650.
  • Valve ball and stem 316 stainless steel.
  • Non-isolating mixing or diverting control.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV A-port seat leakage (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
