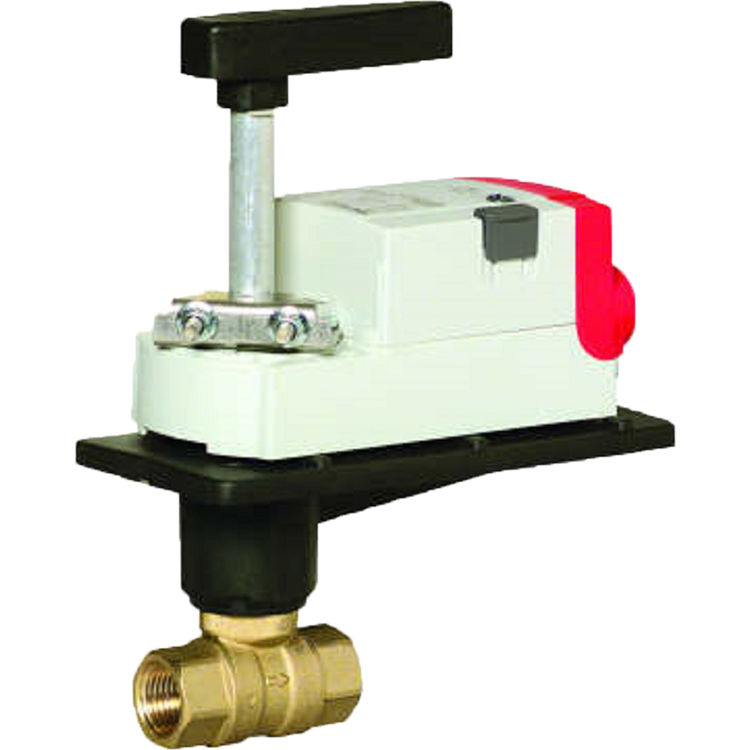

Honeywell VBN2AB3PRA Two-Way Female NPT Actuated Control Ball Valve

SKU: 377049
Minimum Quantity: 1

$194.50/ea
Save 57% · Retail: $454.84

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$194.50/ea

About the Honeywell VBN2AB3PRA

The Honeywell VBN2AB3PRA 1/2 Inch Two-Way Actuated Control Ball valve can control hot and chilled water in HVAC systems. This two-way ball valve has equal percentage of flow characteristic. It has four options of factory-installed actuation control schemes, the Floating, Modulating (2-10 V), Spring Return 2-Position and the Spring Return Modulating/Floating. Its ball and stem is made up of either nickel-chrome plated brass or 316 stainless steel. This Honeywell VBN2AB3PRA 1/2 Inch Two-Way Actuated Control Ball valve is designed for a medium temperature range of from 35 to 250°F at a 360 psi maximum safe operating pressure. It also has removable manual operating handle so you can easily control the valve during installation or in case of power failure. There is no need for extra elbows or extra piping because the valve installs in globe “T” pattern. The Honeywell VBN2AB3PRA 1/2 Inch Two-Way Actuated Control Ball valve ensures quality performance. You can order this valve assembly with or without factory-mounted non-spring return actuators.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Type: Ball Valve
Style: 2 Way
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VBN2AB3PRA
Weight 10.00 lbs.

Product Features

  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Reduced B port CV for constant loop flow.
  • Materials (Body): Brass
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
