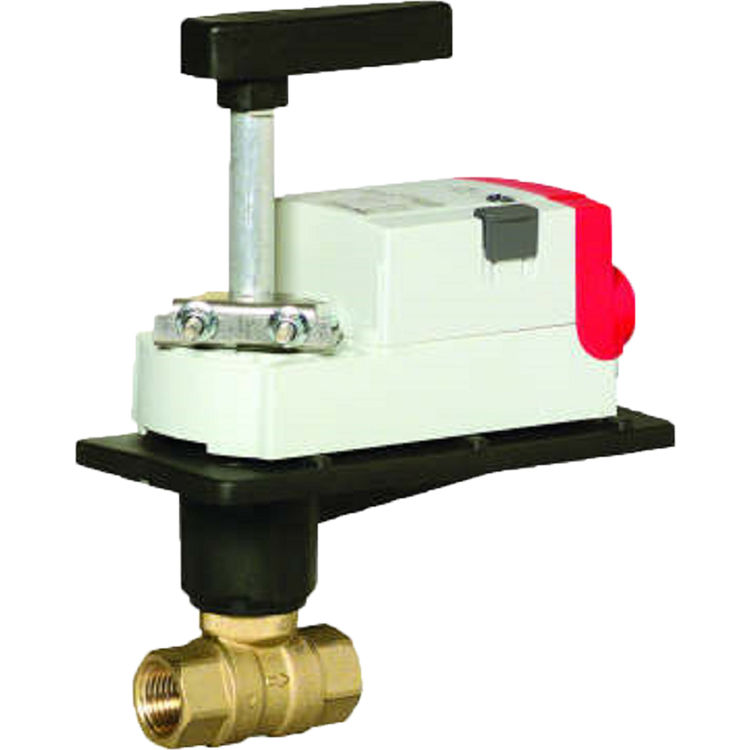

Honeywell VBN2AD3PRA Two-Way Female NPT Actuated Control Ball Valve

SKU: 377069
Minimum Quantity: 1

$194.50/ea
Save 57% · Retail: $454.84

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$194.50/ea

About the Honeywell VBN2AD3PRA

The Honeywell VBN2AD3PRA 1/2 Inch Two-Way Actuated Control Ball Valve can control hot and chilled water in HVAC systems. This two-way ball valve has equal percentage of flow characteristic. It has four options of factory-installed actuation control schemes, the Floating, Modulating (2-10 V), Spring Return 2-Position and the Spring Return Modulating/Floating. Its ball and stem is made up of either nickel-chrome plated brass or 316 stainless steel. This Honeywell VBN2AD3PRA 1/2 Inch Two-Way Actuated Control Ball Valve is designed for a medium temperature range of from 35 to 250°F at a 360 psi maximum safe operating pressure. It also has removable manual operating handle so you can easily control the valve during installation or in case of power failure. There is no need for extra elbows or extra piping because the valve installs in globe “T” pattern. The Honeywell VBN2AD3PRA 1/2 Inch Two-Way Actuated Control Ball Valve ensures quality performance. You can order this valve assembly with or without factory-mounted non-spring return actuators.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Type: Ball Valve
Style: 2 Way
Size:
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VBN2AD3PRA
Weight 6.00 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • Actuator can be mounted on the valve in any of four orientations.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Connection Type: Female NPT
  • Valve Type: Control Ball Valve
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
