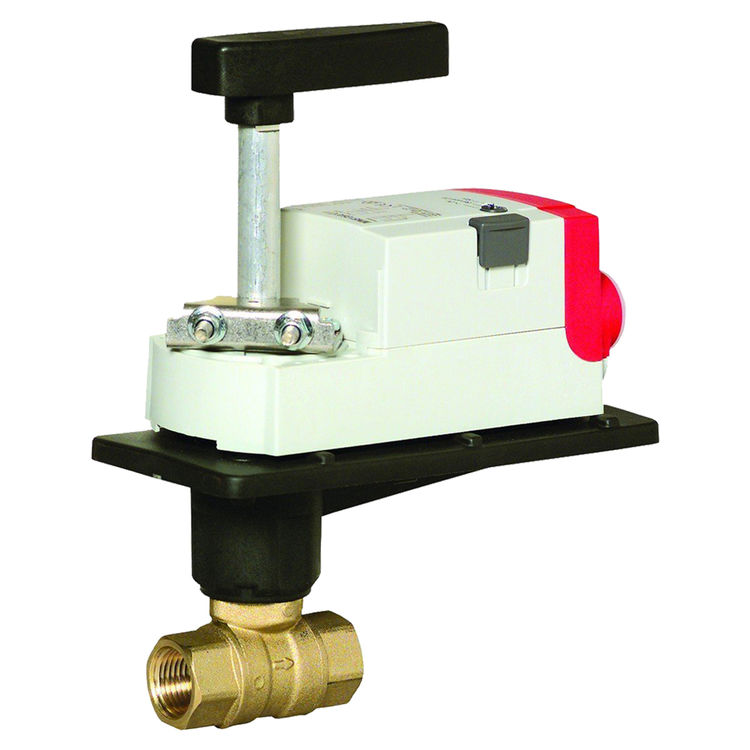

Honeywell VBN2E13S0D/M 1 1/2 in. 2-way f-NPT Control Ball Valve

SKU: 377629

Save 58% · Retail: $794.40

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell VBN2E13S0D


Product Details

Mpn # VBN2E13S0D
Weight 11.58 lbs.

Product Features

  • Two-way
  • Linear
  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Equal percentage or linear flow characteristics.
  • Spring Return Modulating/Floating
  • Spring Return 2-Position
  • Floating, Modulating (2-10 V)
  • Factory-installed actuation control schemes
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Pipe Size (inch) 1 1/2 in
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Pipe Size (DN) DN40
  • Capacity (Cv) 172 Cv
  • Capacity (Kv) 148 kvs
  • Control Ball Valve
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Brass
  • 316 Stainless Steel
