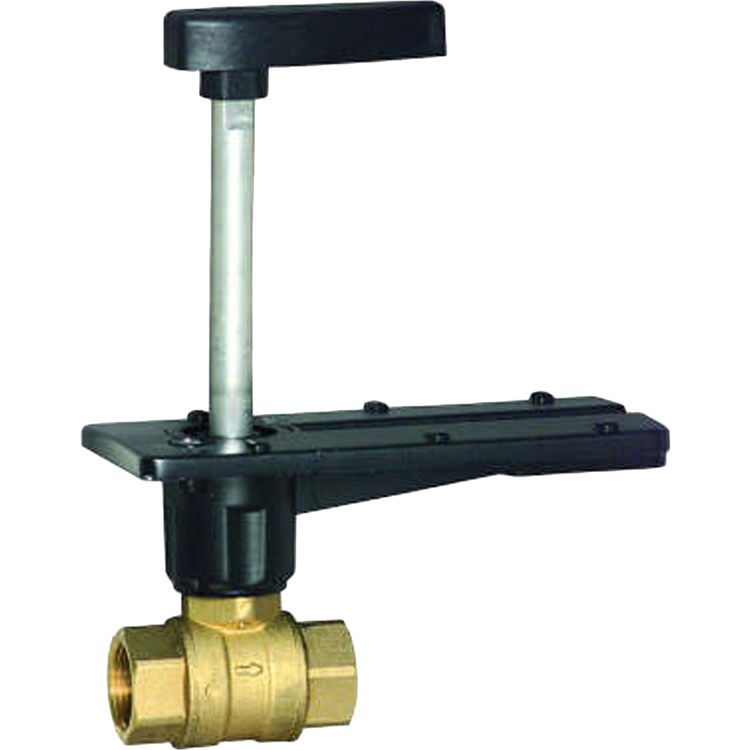

Honeywell VBN2E13S0X Two-Way Female NPT Actuated Control Ball Valve

SKU: 377630
Minimum Quantity: 1

$214.08/ea
Save 57% · Retail: $500.62

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$214.08/ea

About the Honeywell VBN2E13S0X

Honeywell VBN2E13S0X Two-Way Female NPT Actuated Control Ball Valve. The 1-1/2" VBN2 Two-Way Control Ball Valves control hot and chilled water in HVAC systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VBN2E13S0X
Weight 11.47 lbs.

Product Features

  • Two-Way
  • No pre-assembled actuator
  • 316 stainless steel
  • Flow Control Insert
  • ANSI Class IV (0.01% of Cv maximum)
  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Fluid Temperature (F): -22 F to +250 F
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Capacity (Cv): 172 Cv
  • Capacity (Kv): 148 kvs
  • Control Ball Valve
  • Chilled or hot water with up to 50% Glycol
  • Brass
  • Teflon seals with EPDM O-rings
  • Flow Characteristic : Linear
