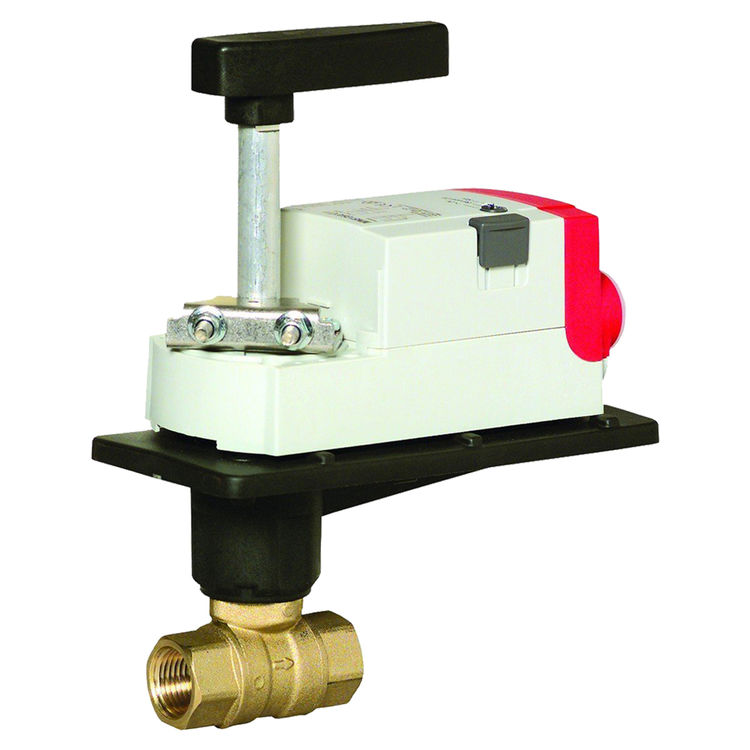

Honeywell VBN2E13SRA Two-Way Female NPT Actuated Control Ball Valve

SKU: 377631
Save 58% · Retail: $820.13

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN2E13SRA

The Honeywell VBN2E13SRA/M 1 1/2 in. 2-way f-NPT Actuated Control Ball Valve. This product is original and manufactured by Honeywell. This valve is uncommon in structure and it is accurate in its feature in flow rate with fewer wear and tear. The control ball valves use the same actuator mounting range for all .5 to 3" valves. This Honeywell VBN2E13SRA/M 1 1/2 in. 2-way f-NPT Actuated Control Ball Valve is made of brass. It has the system that operates in hot and chilled water. Its feature helps to provide two-position or controlling functions for accurate flow control. The Honeywell VBN2E13SRA/M 1 1/2 in. 2-way f-NPT Actuated Control Ball Valve is made up of plated brass and it also has a stainless steel ball and stem that has a two-way body pattern made up of brass. Honeywell has a reliable product that is proven in many areas and buildings worldwide. It is tested in every job performed. flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Type: Ball Valve
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VBN2E13SRA
Weight 4.49 lbs.

Product Features

  • ANSI Class IV (0.01% of Cv maximum)
  • Convertible to straight-through 2-way control by plugging B port
  • Nickel-chrome plated brass valve ball and stem.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Wide C V choices from 0.33 to 109.
  • Sizes up to 3 inches.
  • Straight-through flow between A and AB ports
  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Equal percentage or linear flow characteristics.
  • Teflon seals with EPDM O-rings
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Brass
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Control Ball Valve
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Two-Way
  • Mixing or Diverting control.
