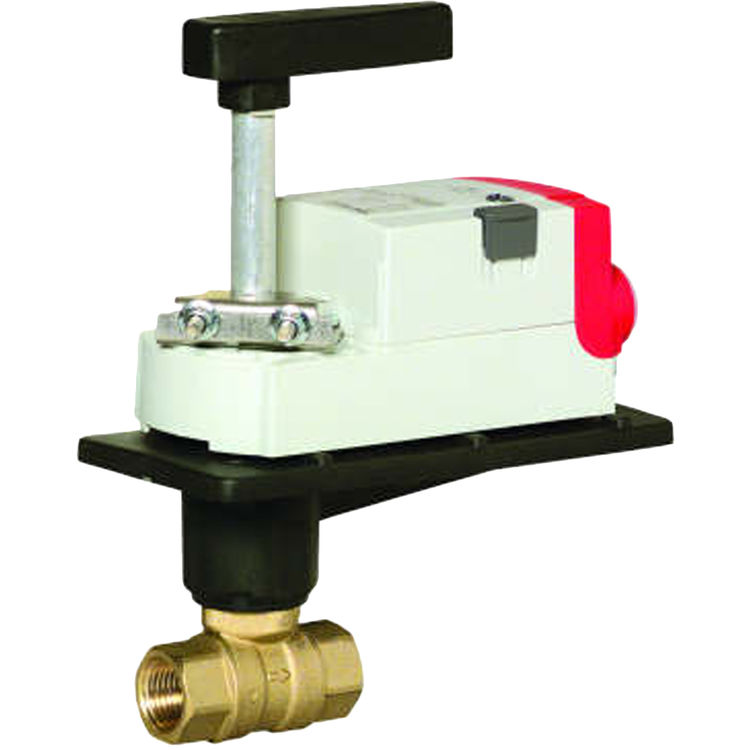

Honeywell VBN2EL3S0A Two-Way Female NPT Actuated Control Ball Valve

SKU: 377644
Minimum Quantity: 1

$223.28/ea
Save 57% · Retail: $522.11

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$223.28/ea

About the Honeywell VBN2EL3S0A

Honeywell VBN2EL3S0A Two-Way Female NPT Actuated Control Ball Valve. The 1-1/2" VBN2 Two-Way Control Ball Valves control hot and chilled water in HVAC systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Features

  • Materials (Plug/Ball/Disc): Nickel-plated brass ball
  • Body Pattern: Two-way
  • Maximum Safe Operating Pressure (kPa):2482 kPa
  • Maximum Safe Operating Pressure (psi):360 psi
  • Mixing or Diverting control.
  • Convertible to straight-through 2-way control by plugging B port
  • Nickel-chrome plated brass valve ball and stem.
  • Wide C V choices from 0.33 to 109.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required
  • Sizes up to 3 inches.
  • Straight-through flow between A and AB ports
  • Materials (Stem): Brass
  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Field-serviceable stem assembly.
  • Materials (Body): Brass
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Capacity (Kv): 19.8 kvs
  • Capacity (Cv): 23 Cv
  • Pipe Size (DN): DN40
  • Pipe Size (inch): 1 1/2 in.
