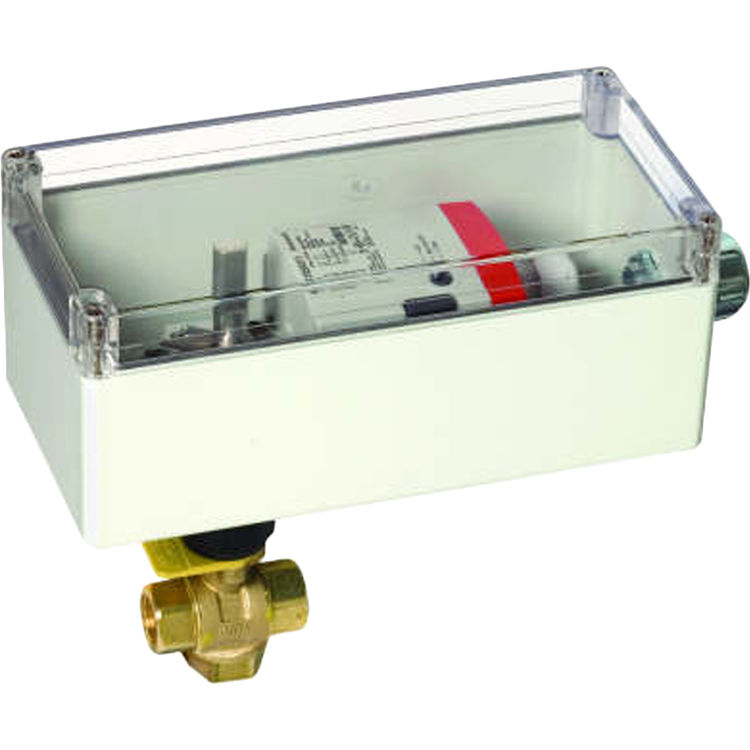

Honeywell VBN2EL3SRB Two-Way Female NPT Actuated Control Ball Valve

SKU: 377650

$396.45/ea
Save 58% · Retail: $951.47

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$396.45/ea

About the Honeywell VBN2EL3SRB

Honeywell VBN2EL3SRB Two-Way Female NPT Actuated Control Ball Valve. The 1-1/2" VBN2 Two-Way Control Ball Valves control hot and chilled water in HVAC systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VBN2EL3SRB
Weight 7.51 lbs.

Product Features

  • Sizes up to 3 inches.
  • Materials (Stem) 316 Stainless Steel
  • Materials (Seat) Teflon seals with EPDM O-rings
  • Materials (Body) Brass
  • Control Ball Valve
  • Two-way
  • Pipe Size (inch) 1 1/2 in.
  • Pipe Size (DN) DN40
  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • . Straight-through flow between A and AB ports
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Wide C V choices from 0.33 to 109.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Mixing or Diverting control.
  • Maximum Safe Operating Pressure (kPa) 2482 kPa
  • Maximum Safe Operating Pressure (psi) 360 psi
  • ANSI Class IV (0.01% of Cv maximum)
  • Linear
