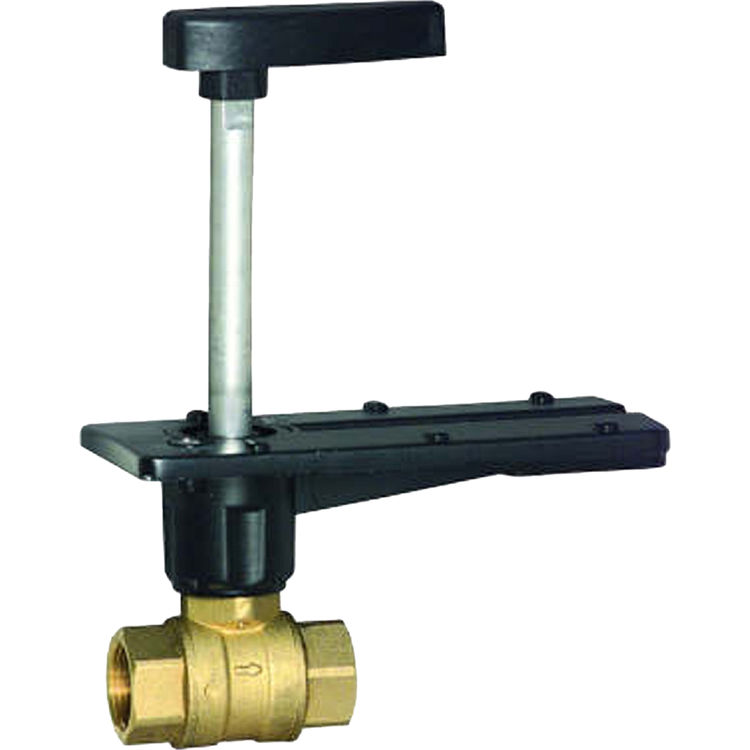

Honeywell VBN2EM3S0A Two-Way Female NPT Actuated Control Ball Valve

SKU: 377662
Save 57% · Retail: $522.11

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN2EM3S0A

Honeywell VBN2EM3S0A Two-Way Female NPT Actuated Control Ball Valve. The 1-1/2" VBN2 Two-Way Control Ball Valves control hot and chilled water in HVAC systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VBN2EM3S0A
Weight 13.72 lbs.

Product Features

  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Capacity (Cv): 23 Cv
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 689 kPa
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi
  • Pipe Size (DN): DN40
  • Pipe Size (inch): 1 1/2 in.
  • Body Pattern: Two-way
  • Connection Type: Female NPT
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Mixing or Diverting control
  • Actuation: Non-Spring Return Modulating
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Straight-through flow between A and AB ports
  • Equal percentage or linear flow characteristics.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Materials (Stem): 316 Stainless Steel
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Materials (Body): Brass
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Controlled Fluid
  • Valve Type: Control Ball Valve
  • Capacity (Kv): 19.8 kvs
