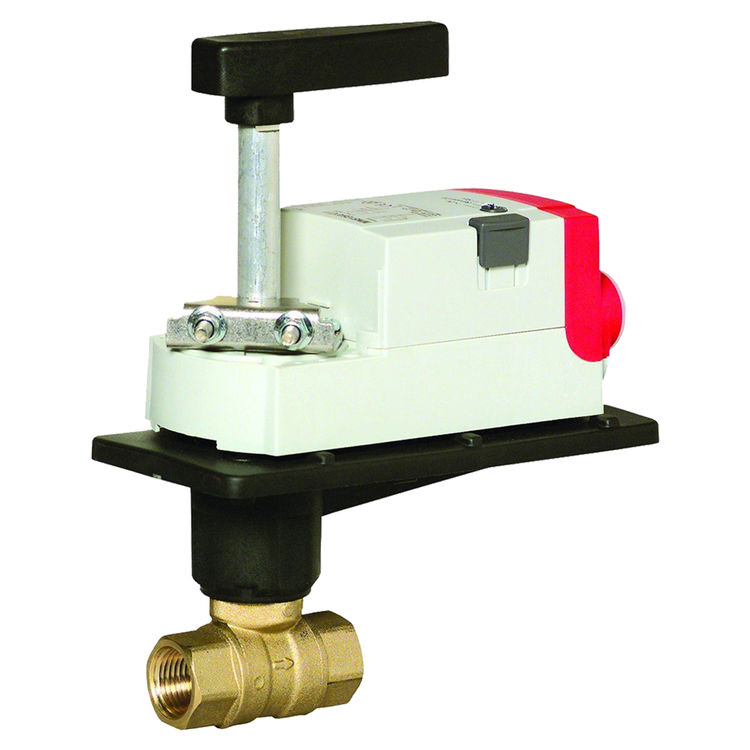

Honeywell VBN2EM3S0D Two-Way Female NPT Actuated Control Ball Valve

SKU: 377665
Minimum Quantity: 1

Save 58% · Retail: $788.98

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VBN2EM3S0D

Honeywell VBN2EM3S0D Two-Way Female NPT Actuated Control Ball Valve. The 1-1/2" VBN2 Two-Way Control Ball Valves control hot and chilled water in HVAC systems to provide two-position or modulating functions. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VBN2EM3S0D
Weight 11.58 lbs.

Product Features

  • Materials (Stem): 316 Stainless Steel
  • Fluid Temperature (F): -22 F to +250 F, (C): -30 C to +121 C
  • Pipe Size (inch): 1 1/2 in., (DN): DN40
  • Body Pattern: Two-way
  • Connection Type: Female NPT
  • Maximum Safe Operating Pressure (psi): 360 psi, (kPa): 2482 kPa
  • Mixing or Diverting control
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Straight-through flow between A and AB ports
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Materials (Body): Brass
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Not for use with steam or fuels
  • Chilled or hot water with up to 50% Glycol
  • Controlled Fluid
  • Valve Type: Control Ball Valve
  • Capacity (Kv): 19.8 kvs
  • Capacity (Cv): 23 Cv
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi, (kPa): 689 kPa
