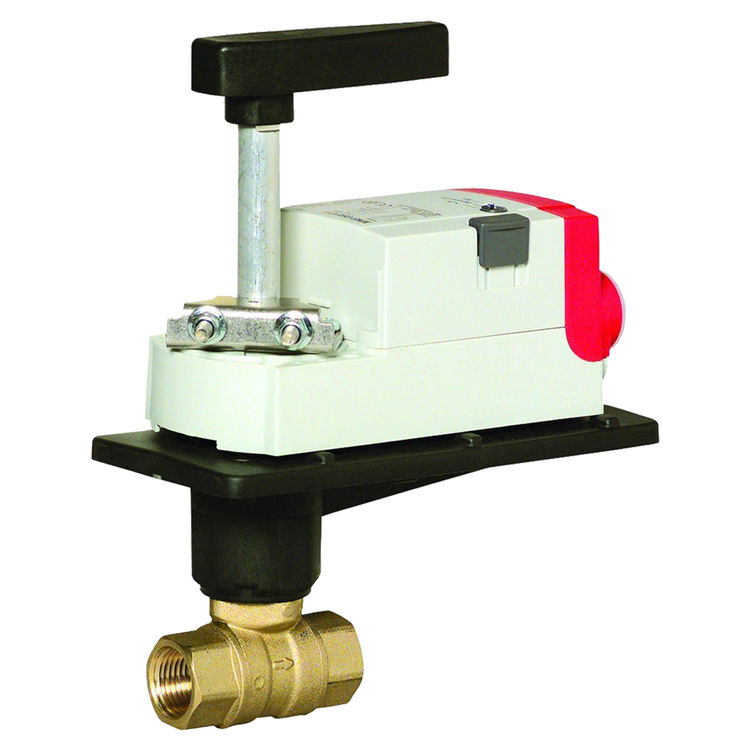

Honeywell VBN2EM3S0X Two-Way Female NPT Actuated Control Ball Valve

SKU: 377666
Save 57% · Retail: $489.80

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN2EM3S0X

The Honeywell VBN2EM3S0X/U 1 1/2 Inch Two-Way Female NPT Actuated Control Ball Valve can control hot and chilled water in HVAC systems. This two-way ball valve has equal percentage of flow characteristic. It has four options of factory-installed actuation control schemes, the Floating, Modulating (2-10 V), Spring Return 2-Position and the Spring Return Modulating/Floating. Its ball and stem is made up of either nickel-chrome plated brass or 316 stainless steel. This Honeywell VBN2EM3S0X/U 1 1/2 Inch Three-Way Female NPT Actuated Control Ball Valve is designed for a medium temperature range of from 35 to 250°F at a 360 psi maximum safe operating pressure. It also has removable manual operating handle so you can easily control the valve during installation or in case of power failure. There is no need for extra elbows or extra piping because the valve installs in globe “T” pattern. The Honeywell VBN2EM3S0X/U 1 1/2 Inch Two-Way Female NPT Actuated Control Ball Valve ensures quality performance. You can order this valve assembly with or without factory-mounted non-spring return actuators.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Type: Ball Valve
Style: 2 Way
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VBN2EM3S0X
Weight 9.00 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Valve Type: Control Ball Valve
  • Controlled Fluid
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Materials (Body): Brass
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Materials (Stem): 316 Stainless Steel
  • Flow Characteristic: Equal Percentage
  • Actuation: Non-Spring Return Modulating
  • Materials (Plug/Ball/Disc): 316 stainless steel
  • Materials (Flow Control Insert): Noryl
  • Field configurable for normally open or normally closed fail-safe position.
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • Actuator can be mounted on the valve in any of four orientations.
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
  • Connection Type: Female NPT
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 689 kPa
