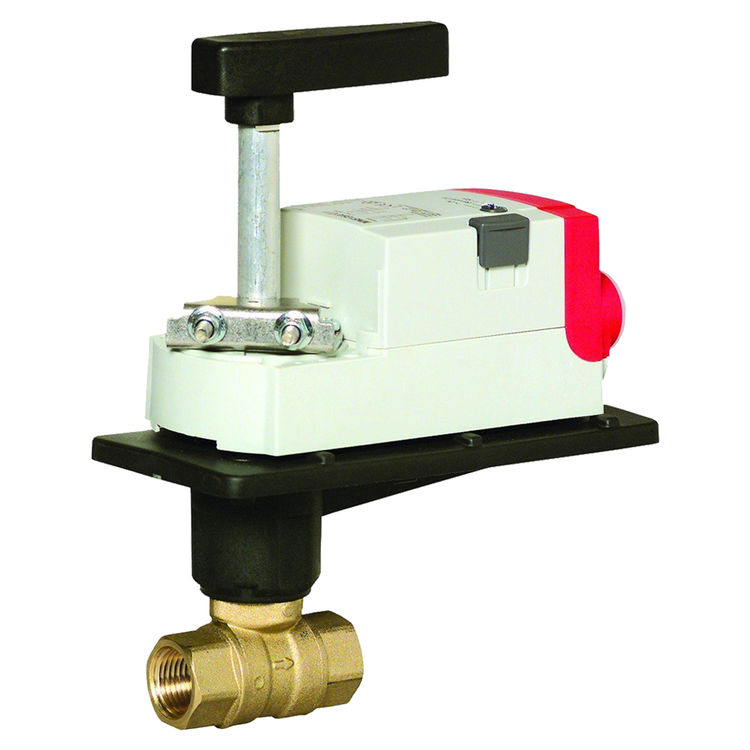

Honeywell VBN2EM3SRC Two-Way Female NPT Actuated Control Ball Valve

SKU: 377669
Save 48% · Retail: $947.64

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN2EM3SRC

The Honeywell VBN2EM3SRC/M 1-1/2 In. 2-Way Actuated Control Ball Valve. Is manufactured by Honeywell. This valve is accurate in measuring flow rate. The control ball valves use the same actuator mounting range for all .5 - 3" valves. This Honeywell VBN2EM3SRC/M 1-1/2 In. 2-Way Actuated Control Ball Valve is made of brass. It is for a system that operates in hot and chilled water. Its feature helps to provide two-position or controlling functions for accurate flow control. The Honeywell VBN2EM3SRC/M 1-1/2 In. 2-Way Actuated Control Ball Valve is made up of plated brass and it also has a stainless steel ball and stem that has a two-way body pattern made up of brass. Honywell makes reliable products that are proven in many areas and buildings worldwide. flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. And Honeywell's Cv ratings are similar to globe valve Cv ratings, making it easier to design your system using a ball valve.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Weight 7.52 lbs.

Product Features

  • Straight-through flow between A and AB ports
  • Controlled Fluid
  • Chilled or hot water with up to 50% Glycol
  • Not for use with steam or fuels
  • Materials (Body): Brass
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Materials (Stem): 316 Stainless Steel
  • Actuation: Non-Spring Return Modulating
  • Materials (Plug/Ball/Disc): 316 stainless steel
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Mixing or Diverting control
  • Body Pattern: Two-way
  • Pipe Size (inch): 1 1/2 in. (DN): DN40
  • Fluid Temperature (F): -22 F to +250 F, (C): -30 C to +121 C
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi, (kPa): 689 kPa
  • Capacity (Cv): 23 Cv, (Kv): 19.8 kvs
  • Valve Type: Control Ball Valve
