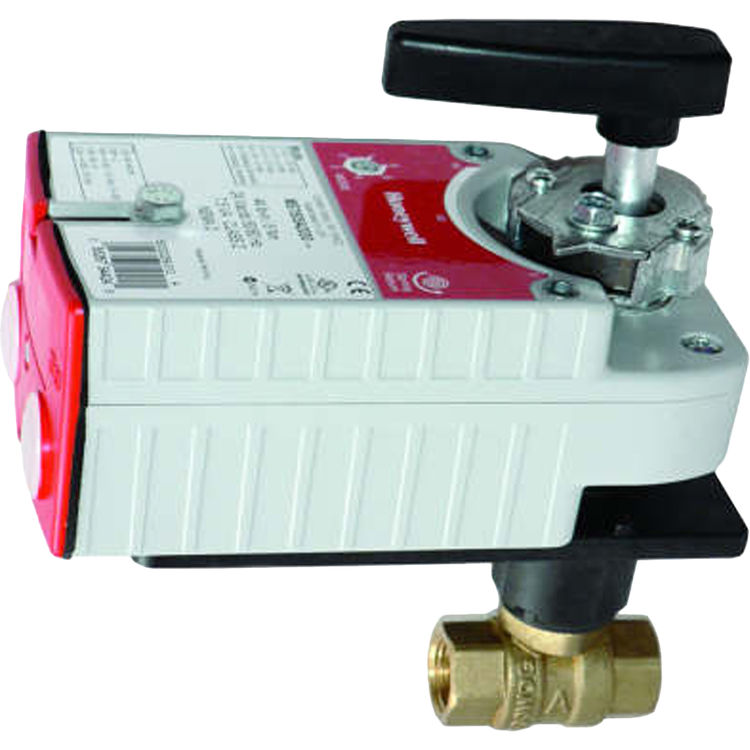

Honeywell VBN2G13P0C Two-Way Female NPT Actuated Control Ball Valve

SKU: 377835
Save 58% · Retail: $977.76

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN2G13P0C

The Honeywell VBN2G13P0C 2.5 Inch, 2-Way Actuated Control Ball Valve is designed to control hot and chilled water in HVAC systems. This two-way ball valve has four options of factory-installed actuation control schemes: the Floating, the Modulating (2-10 V), the Spring Return 2-Position, and the Spring Return Modulating/Floating. This Honeywell VBN2G13P0C 2.5 Inch, 2-Way Actuated Control Ball Valve is designed for a medium temperature range of from 35 to 250°F at a 360 psi maximum operating pressure, and utilizes Teflon seals with EPDM O-rings. It also has a removable manual operating handle so you can easily control the valve during installation or in case of power failure. There is no need for extra elbows or extra piping because the valve installs in globe “T” pattern. The Honeywell VBN2G13P0C 2.5 Inch, 2-Way Actuated Control Ball Valve ensures quality performance in both commercial and industrial applications. These ball valves are for water applications up to 50% Glycol content, but are not to be used with steam or fuels.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Type: Ball Valve
Style: 2 Way
Connection Type: Female Thread
Trade Tools: HVAC
Mpn # VBN2G13P0C
Weight 10.40 lbs.

Product Features

  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
