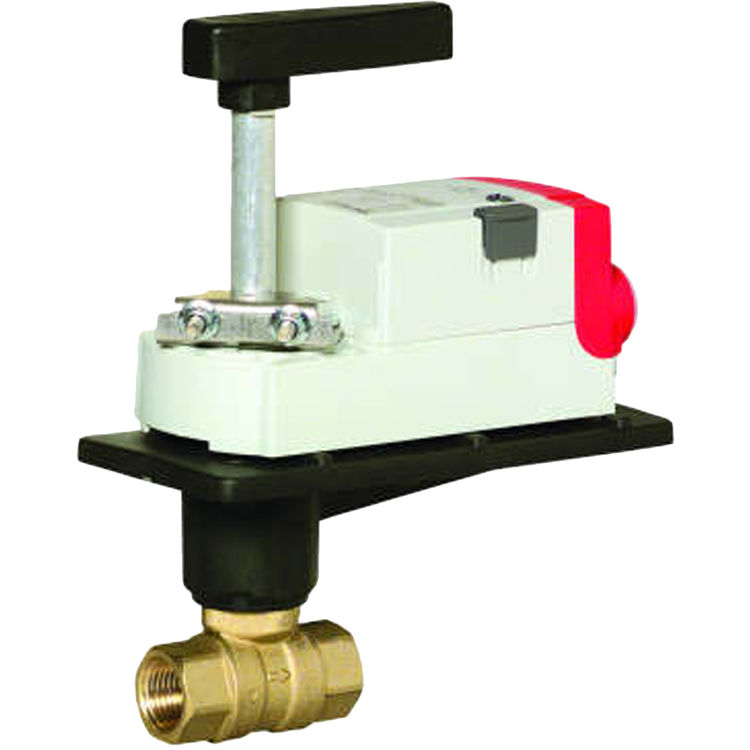

Honeywell VBN2HU3S0A Two-Way Female NPT Actuated Control Ball Valve

SKU: 378022
Minimum Quantity: 1

$515.04/ea
Save 40% · Retail: $853.25

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$515.04/ea

About the Honeywell VBN2HU3S0A

3. INCH, 2-WAY ACTUATED CONTROL BALL VALVE, W/145 CV, NSR FLOATING ACTUATOR

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Use: Water
Type: Ball Valve
Style: 2 Way
Size:
Electrical Voltage: 24 Volt
Connection Type: Female Thread
Trade Tools: HVAC
Mpn # VBN2HU3S0A
Weight 11.80 lbs.

Product Features

  • Sizes from 1/2 to 3 inches with internal (female) NPT connections.
  • Actuator can be mounted on the valve in any of four positions.
  • Field-serviceable stem assembly.
  • Wide Cv choices from 0.38 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Equal percentage or linear flow characteristics.
  • Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 2-Position, Spring Return Modulating/Floating.
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • ANSI Class IV seat leakage specification (0.01% of Cv).
  • Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
