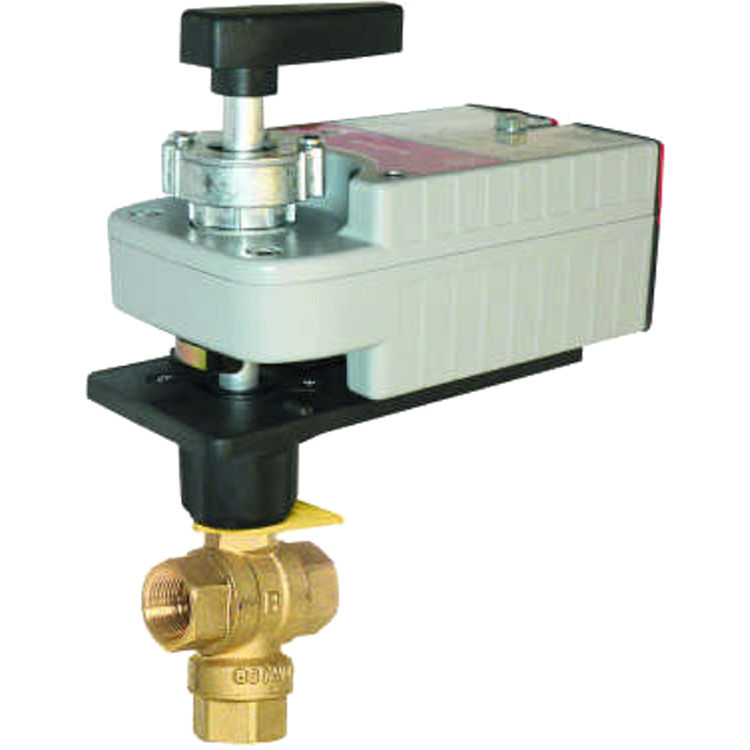

The Honeywell VBN3BF3P0A 3/4 Inch 3-Way Actuated Control Ball Valve

SKU: 378121

$119.73/ea
Save 56% · Retail: $272.61

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$119.73/ea

About the Honeywell VBN3BF3P0A

The VBN3 Three-Way Control Ball Valves control hot/chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. Ordered with without factory-mounted actuators.

Product Details

Manufacturer: Honeywell
Type: Ball Valve
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VBN3BF3P0A
Weight 5.52 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Mixing or Diverting control for 3-way valves.
  • Straight-through flow between A and AB ports
  • Wide C V choices from 0.33 to 109.
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
  • Connection Type: Female NPT
  • Pipe Size (inch): 1 1/2 in.
  • Pipe Size (DN): DN40
  • Fluid Temperature (C): -30 C to +121 C
  • Equal percentage flow characteristic.
  • Fluid Temperature (F): -22 F to +250 F
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 689 kPa
  • Capacity (Cv): 23 Cv
  • Capacity (Kv): 19.8 kvs
  • Valve Type: Control Ball Valve
  • Controlled Fluid
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Materials (Body): Brass
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Reduced B port CV for constant loop flow.
  • Actuation: Non-Spring Return Modulating
  • Materials (Plug/Ball/Disc): 316 stainless steel
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Field configurable for normally open or normally closed fail-safe position.
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • Actuator can be mounted on the valve in any of four orientations.
  • Field-serviceable stem assembly.
  • Wide range of CV choices from 0.33 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
