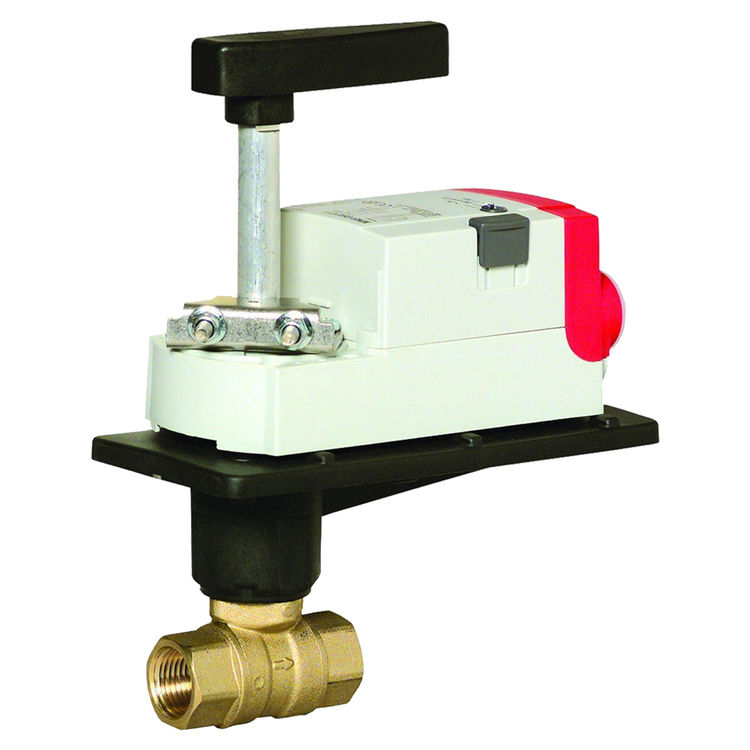

Honeywell VBN3BF3PRB Three-Way Female NPT Actuated Control Ball Valve

SKU: 378128
Save 58% · Retail: $638.20

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VBN3BF3PRB

Honeywell VBN3BF3PRB Three-Way Female NPT Actuated Control Ball Valve. The 3/4" 2.4Cv, VBN3 Three-Way Control Ball Valves control hot/chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. Ordered with/without factory-mounted actuators.

Product Details

Manufacturer: Honeywell
Type: Ball Valve
Connection Type: Female Thread
Other Info: Easy To Install
Trade Tools: HVAC

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Fluid Temperature (C): -30 C to +121 C
  • Fluid Temperature (F): -22 F to +250 F
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 689 kPa
  • Capacity (Cv): 23 Cv
  • Capacity (Kv): 19.8 kvs
  • Valve Type: Control Ball Valve
  • Controlled Fluid
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Materials (Body): Brass
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Actuation: Non-Spring Return Modulating
  • Materials (Plug/Ball/Disc): 316 stainless steel
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Field-serviceable stem assembly.
  • Equal percentage flow characteristic.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
  • Wide range of CV choices from 0.33 to 266.
  • Mixing or Diverting control for 3-way valves.
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
