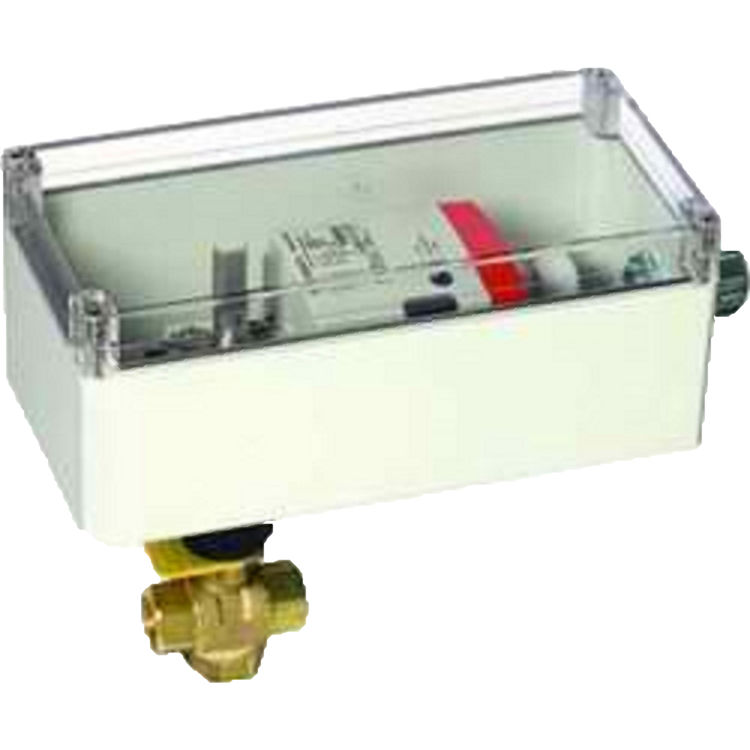

Honeywell VBN3CF3PRB Three-Way Female NPT Actuated Control Ball Valve

SKU: 378194

Save 58% · Retail: $730.52

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell VBN3CF3PRB

The Honeywell VBN3CF3PRB 1. Inch 3-Way Actuated Control Ball Valve can control hot and chilled water in HVAC systems. This three-way ball valve has equal percentage of flow characteristic. It has four options of factory-installed actuation control schemes, the Floating, Modulating (2-10 V), Spring Return 2-Position and the Spring Return Modulating/Floating. Its ball and stem is made up of either nickel-chrome plated brass or 316 stainless steel. This Honeywell VBN3CF3PRB 1. Inch 3-Way Actuated Control Ball Valve is designed for a medium temperature range of from 35 to 250°F at a 360 psi maximum safe operating pressure. It also has removable manual operating handle so you can easily control the valve during installation or in case of power failure. There is no need for extra elbows or extra piping because the valve installs in globe “T” pattern. The Honeywell VBN3CF3PRB 1. Inch 3-Way Actuated Control Ball Valve ensures quality performance. You can order this valve assembly with or without factory-mounted non-spring return actuators.

Product Details

Manufacturer: Honeywell
Style: 3 Way
Connection Type: Threaded
Other Info: Easy To Install
Trade Tools: HVAC
Weight 6.05 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Mixing or Diverting control for 3-way valves.
  • Straight-through flow between A and AB ports
  • Wide C V choices from 0.33 to 109.
  • Maximum Safe Operating Pressure (psi): 360 psi
  • Maximum Safe Operating Pressure (kPa): 2482 kPa
  • Connection Type: Female NPT
  • Pipe Size (inch): 1 1/2 in.
  • Pipe Size (DN): DN40
  • Fluid Temperature (C): -30 C to +121 C
  • Fluid Temperature (F): -22 F to +250 F
  • Reduced B port CV for constant loop flow.
  • Maximum Differential Pressure Ratings (Close-off) (psi): 100 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa): 689 kPa
  • Capacity (Cv): 23 Cv
  • Capacity (Kv): 19.8 kvs
  • Valve Type: Control Ball Valve
  • Controlled Fluid
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Materials (Body): Brass
  • Materials (Seat): Teflon seals with EPDM O-rings
  • Materials (Stem): 316 Stainless Steel
  • Field configurable for normally open or normally closed fail-safe position.
  • Flow Characteristic: Equal Percentage
  • Actuation: Non-Spring Return Modulating
  • Materials (Plug/Ball/Disc): 316 stainless steel
  • Materials (Flow Control Insert): Noryl
  • Leakage: ANSI Class IV (0.01% of Cv maximum)
  • Removable manual operating handle to control valve during installation or in an event of power failure.
  • Actuator can be mounted on the valve in any of four orientations.
  • Field-serviceable stem assembly.
  • Wide range of CV choices from 0.33 to 266.
  • Nickel-chrome plated brass or 316 stainless steel ball and stem.
  • Valve installs in a globe valve T pattern, no extra elbows or piping required.
