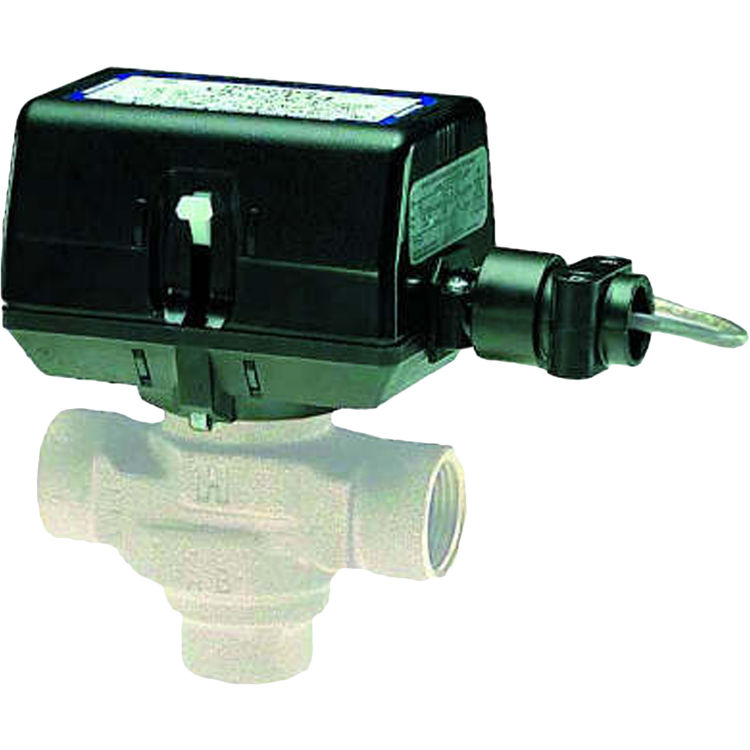

Honeywell VC6936ND6100/U 3-WayValve Assembly

SKU: 378476
Save 57% · Retail: $614.38

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VC6936ND6100

Honeywell VC6936ND6100/U Three-Way 1-1/4 In. FNPT VC Valve Assembly. The Fail Safe VC6936 Floating and VC7936 Modulating Control valves provides proportional control of hot or chilled water in commercial HVAC applications, such as unit ventilators. On a power failure, this patented actuator design drives the valve to the fail safe position, either fully open or closed according to the installer's wiring connections. These actuators use a microprocessor-controlled, low voltage stepper motor with a super capacitor-based power supply capable of storing enough power to drive the valve to its when 24V power is removed from the actuator.

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Repair Kit
Style: 3 Way
Mpn # VC6936ND6100
Weight 2.00 lbs.

Product Features

  • 300 psi
  • 1 1/4 in.
  • DN32
  • 1 C to 95 C
  • 34 F to 203 F
  • 60 psi
  • 414 kPa (4 bar)
  • 9 Cv
  • 7.8 kvs
  • Stem up to close A port
  • Cartridge Cage Valve
  • 2068 kappa (20 Bar)
  • Chilled or hot water with up to 60% Glycol
  • Bronze
  • EPDM O-ring seals on Noryl piston
  • Stainless Steel
  • Across 53.6-to 86 F Temperature Range
  • Linear
  • Floating (24V SP3T) fail-safe
  • 0.4 in.
  • 10 mm
  • EPDM rubber
  • characterized cartridge for use with non-fail safe floating and modulating actuators
  • CSA Certified
  • When used with VC series Actuator--2 minutes
  • 32 F to 150 F
  • 0 C to 65 C
  • Female NPT
  • Three-way A-AB-B
