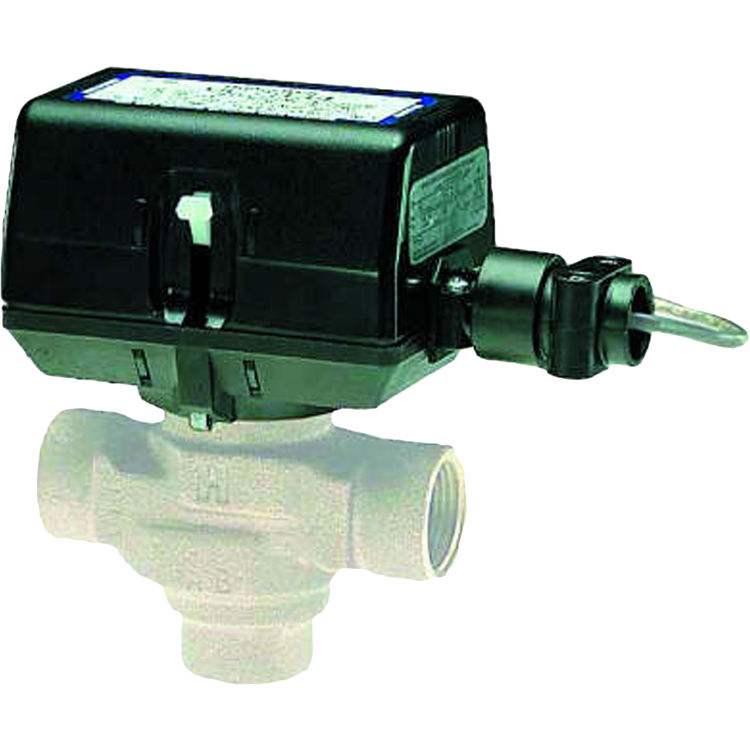

Honeywell VC6936ZZ11-530/U 4-wire Floating Actuator

SKU: 378478

$61.54/ea
Save 54% · Retail: $132.54

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$61.54/ea

About the Honeywell VC6936ZZ11-530

Honeywell VC6936ZZ11-530/U 4-Wire Floating Actuator. Actuators control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line Voltage SPST or SPDT or Floating or modulating controller.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # VC6936ZZ11-530
Weight 2.00 lbs.

Product Features

  • HVAC
  • Direct Coupled
  • 50 Hz; 60 Hz
  • Listed 94-5V
  • CSA Certified: LR1322-367
  • Plenum-rated cable
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 12 Watts, 18 VA inrush
  • -40 F to +150 F
  • -40 C to +65 C
  • 2.8 in. high x 3.7 in. wide x 2.7 in. deep
  • 89/336/ECC, 73/23/EEC
  • 32 F to 150 F
  • 0 C to 65 C
  • IP40,Double Insulated
  • 0
  • 95 C
  • 203 F
  • Valve
  • SP3T (tri-state) Floating; 24 Vac SPDT
  • N.O. or N.C., switchable electronic
  • 70 mm high x 94 mm wide x 68 mm deep
  • 0.4 in.
  • 10 mm
  • Molded strain relief, conduit clamp
  • Driving @ 60 Hz (sec)-- 120 sec
  • Nominal-- 12 sec
  • 60 psid
  • 400 kPa
  • Self-alignment
  • Lever
  • 5 ft.
  • Flexible conduit adapter
  • 1.5 m
  • VC Series Valves, 1000 Series 2-way and 6000 Series 3-way with proportional cartridges
  • 0.84 lb
  • 0.38 kg
  • Plastic housing
  • Power failure reposition installer-selectable for NC/NO. Use with series 60 controller (TB6980 or XL10). Replaces VC6936ZZ11-524/526/527.
