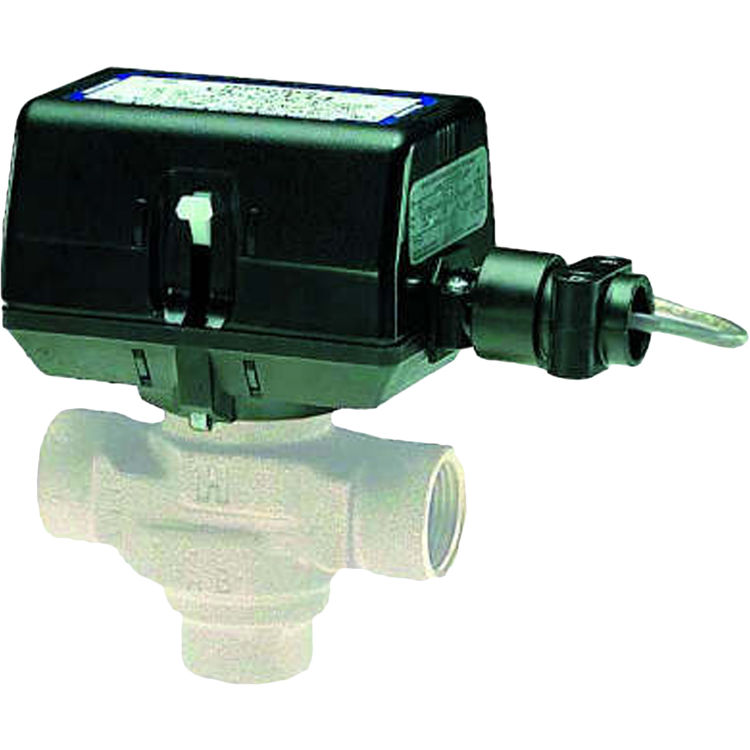

Honeywell VC7936MR6100/U 3-Way 1" Sweat VC Valve Assembly

SKU: 378511

$259.55/ea
Save 60% · Retail: $646.81

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$259.55/ea

About the Honeywell VC7936MR6100

Honeywell VC7936MR6100/U 3-Way 1 In. Sweat VC Valve Assembly. The Fail Safe VC6936 Floating and VC7936 Modulating Control valves provides proportional control of hot or chilled water in commercial heating and cooling applications, such as unit ventilators. On a power failure, this patented actuator design drives the valve to the fail safe position, either fully open or closed according to the installer's wiring connections. These actuators use a microprocessor-controlled, low voltage stepper motor with a super capacitor-based power supply capable of storing enough power to drive the valve to its when 24V power is removed from the actuator. A VC hydronic valve consists of a valve body, a replaceable characterized cartridge assembly and a Honeywell VC6900 or VC7900-series actuator, providing proportional flow control. Three Way bodies may be used in either diverting or mixing applications. VC valves use cam-operated cartridge travel to resist water hammer. Limit switches prevent motor overrun. for best control, outdoor temperature compensation of supply water temperature is recommended.

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Repair Kit
Style: 3 Way
Mpn # VC7936MR6100
Weight 1.10 lbs.

Product Features

  • 300 psi
  • 1 in.
  • DN25
  • 1 C to 95 C
  • 34 F to 203 F
  • 60 psi
  • 414 kPa (4 bar)
  • 8.3 Cv
  • 7.2 kvs
  • Stem up to close A port
  • Cartridge Cage Valve
  • 2068 kappa (20 Bar)
  • Chilled or hot water with up to 60% Glycol
  • Bronze
  • EPDM O-ring seals on Noryl piston
  • Stainless Steel
  • Receiver: -40 to +150deg F; Sensor: 45-to 99 F
  • Linear
  • Modulating/Floating/PWM fail-safe
  • 0.4 in.
  • 10 mm
  • EPDM rubber
  • characterized cartridge for use with floating and modulating actuators. Can be controlled by either a low or a line voltage SPDT or SPST or floating controller
  • CSA Certified
  • When used with VC series Actuator--Installer-selectable 60 or 120 seconds
  • 32 F to 150 F
  • 0 C to 65 C
  • Female NPT
  • Three-way A-AB-B
