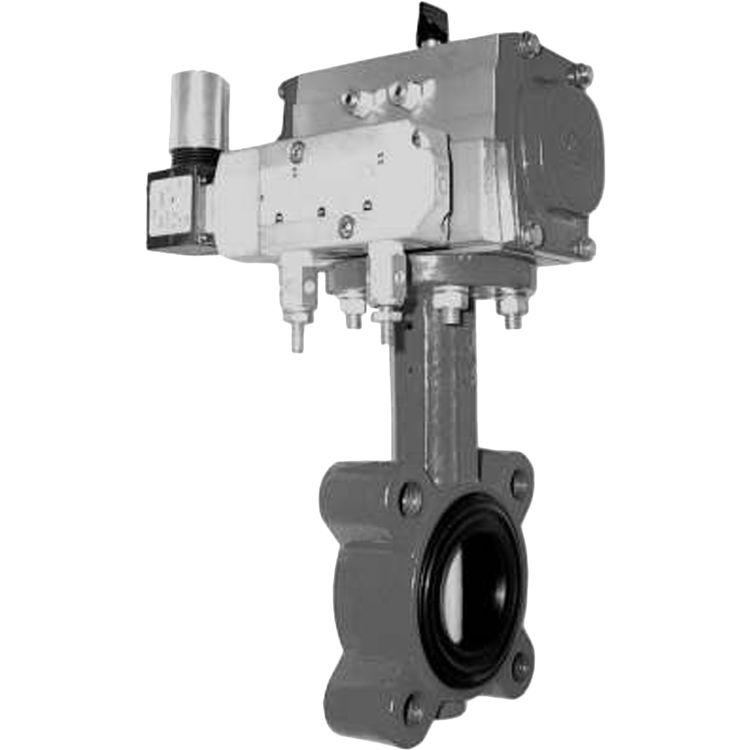

Honeywell VFF1FW1YXS 2-Way 2-Inch Resilient Seat Butterfly Valve

SKU: 378606

$648.06/ea
Save 57% · Retail: $1,495.52

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$648.06/ea

About the Honeywell VFF1FW1YXS

The Honeywell VFF1FW1YXS 2-Way 2 Inch Resilient- Seat Flanged Butterfly Valve is a certified and approved product of Honeywell. This two way valve is ideal for high flow applications and covers a diverse range of applications. The Honeywell VFF1FW1YXS 2-Way 2 Inch Resilient- Seat Flanged Butterfly Valve features a single actuator that synchronizes disc positions, and Nylon coating which offers reduced valve friction. This valve also includes Position indicator and, thanks to the resilient-seat technology offered in many Honeywell valves, the Honeywell VFF1FW1YXS 2-Way 2 Inch Resilient- Seat Flanged Butterfly Valve has a close off rating that has three times the closing force of valves that have been available previously. It gives you the flexibility to decide on the precise, most cost-effective actuator for your application. This product is compact enough to handle easily, and yet engineered for durability and reliability with a high rate of flow capacity and manual or end of line shut off applications. The Honeywell 2-WAY Butterfly Valve will meet and even exceed your HVAC, thermal storage system, chilled water, hot water and cooling tower water application expectations.

Product Details

Product: Butterfly
Manufacturer: Honeywell
Style: 2 Way
Connection Type: Flanged
Mpn # VFF1FW1YXS

Product Features

  • Assembly--Length: 6 in.; Height: 12-1/8 in.; Width: 4-5/8 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • Actuator-- -40 F to 200 F
  • Actuator-- -40 C to 95 C
  • Lugged
  • 2 way (S/R NO)
  • 2 in.
  • DN50
  • 175 psi
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Assembly--Length: 152 mm; Height: 307 mm; Width: 117 mm; Neck: 140 mm; Radius; 58 mm
  • Normally Open
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • Pneumatic, 2-position, 80 psi spring return
  • 250 psi Maximum
  • 1724 kPa Maximum
  • Position indicator
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 14.9 lb
  • 6.8 kg
  • ANSI Flanged
  • -40 F to 250 F
  • -40 C to 121 C
  • Pneumatic
