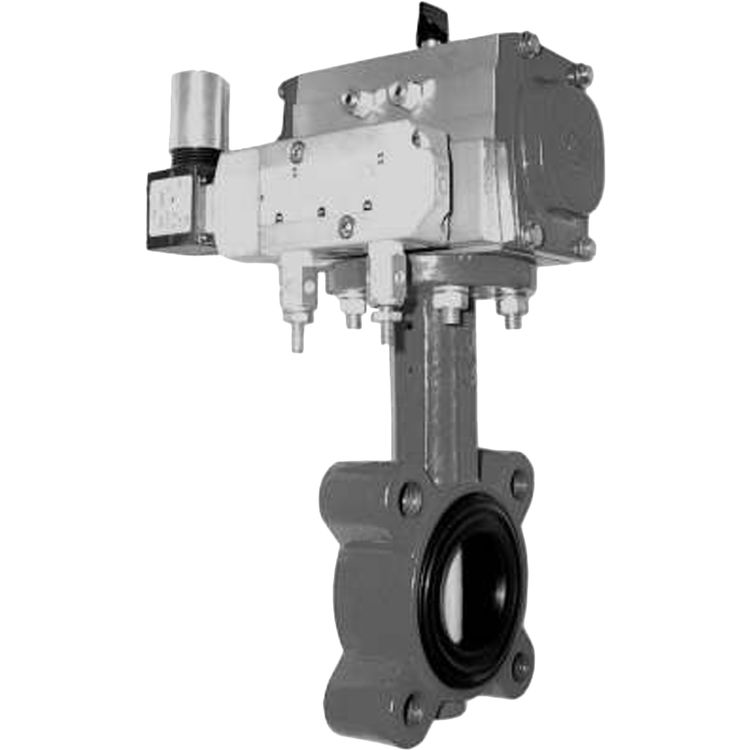

Honeywell VFF1GW1YCS/M 2-Way 2.5" Flanged Butterfly Valve

SKU: 378608

$801.89/ea
Save 59% · Retail: $1,973.87

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$801.89/ea

About the Honeywell VFF1GW1YCS

The Honeywell VFF1GW1YCS 2-Way 2.5 Inch Resilient- Seat Flanged Butterfly Valve is a certified and approved product of Honeywell. This two way valve is ideal for high flow applications and covers a diverse range of applications. The Honeywell VFF1GW1YCS 2-Way 2.5 Inch Resilient- Seat Flanged Butterfly Valve features a single actuator that synchronizes disc positions, and Nylon coating which offers reduced valve friction. This valve also includes Position indicator and, thanks to the resilient-seat technology offered in many Honeywell valves, the Honeywell VFF1GW1YCS 2-Way 2.5 Inch Resilient- Seat Flanged Butterfly Valve has a close off rating that has three times the closing force of valves that have been available previously. It gives you the flexibility to decide on the precise, most cost-effective actuator for your application. This product is compact enough to handle easily, and yet engineered for durability and reliability with a high rate of flow capacity and manual or end of line shut off applications. The Honeywell 2-WAY Butterfly Valve will meet and even exceed your HVAC, thermal storage system, chilled water, hot water and cooling tower water application expectations.

Product Details

Product: Butterfly
Manufacturer: Honeywell
Type:
Style: 2 Way
Connection Type: Flanged
Mpn # VFF1GW1YCS

Product Features

  • Assembly--Length: 6 in.; Height: 12-7/8 in.; Width: 5-1/8 in.; Neck: 6 in.; Radius; 2-9/16 in.
  • 175 psi
  • 1206 kPa
  • Assembly--Length: 152 mm; Height: 327 mm; Width: 131 mm; Neck: 152 mm; Radius; 65 mm
  • at 60 degrees stroke--107 Cv; at 90 degrees stroke--282 Cv
  • at 60 degrees stroke--93 kvs; at 90 degrees stroke--244 kvs
  • Normally Open
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • Certified
  • 416 Stainless Steel
  • Modified Equal Percent
  • Pneumatic, 2-position, 24 Vac solenoid 80 psi spring return
  • Position indicator
  • 250 psi Maximum
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 15.1 lb
  • 6.9 kg
  • Pneumatic
  • ANSI Flanged
  • 24 Vac
  • -40 F to 250 F
  • -40 C to 121 C
  • Actuator-- -13 F to 140 F
  • Actuator-- -25 C to 67 C
  • Lugged
  • 2 way (S/R NO)
  • 2-1/2 in.
  • DN65
