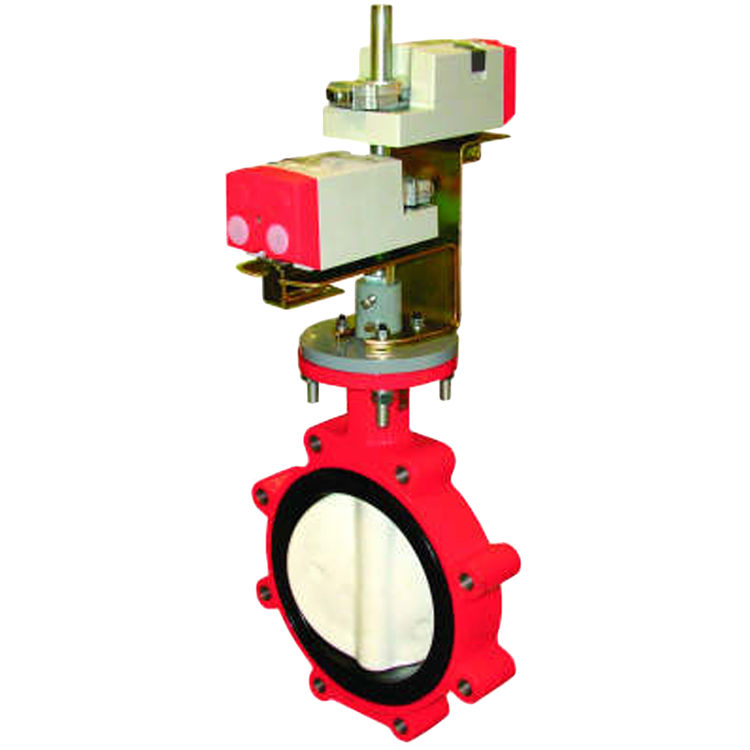

Honeywell VFF2FW1Y2D/M 2-Way 2" flanged Butterfly Valve

SKU: 378740

This product is not currently available for purchase.

About the Honeywell VFF2FW1Y2D/M 2-Way 2" flanged Butterfly Valve

Honeywell VFF2FW1Y2D/M 2-Way 2in flanged Butterfly Valve. These resilient seat Two-Way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

Product: Butterfly
Manufacturer: Honeywell
Style: 2 Way
Connection Type: Flanged
Mpn # VFF2FW1Y2D
Weight 1.00 lbs.
  • Assembly--Length: 9-13/16 in.; Height: 10-7/8 in.; Width: 4-5/8 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • 89/336/ECC, 73/23/EEC
  • NEMA 2 housing
  • Actuator-- -40 F to 140 F
  • Actuator-- -40 C to 60 C
  • N314
  • Lugged
  • 2 way (NC, NC/NO; NSR)
  • 2 in.
  • DN50
  • 175 psi
  • Assembly--Length: 249 mm; Height: 274 mm; Width: 117 mm; Neck: 140 mm; Radius; 58 mm
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed, convertible to Normally Open with Spring Return DCA
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • 14.1 lb
  • Electric floating; Electric modulating, Spring Return Floating/Modulating control
  • 250 psi Maximum
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 6.4 kg
  • ANSI Flanged
  • UL873, Plenum Rated
  • C/US C22.2 No. 24-93
  • -40 F to 250 F
  • -40 C to 121 C
