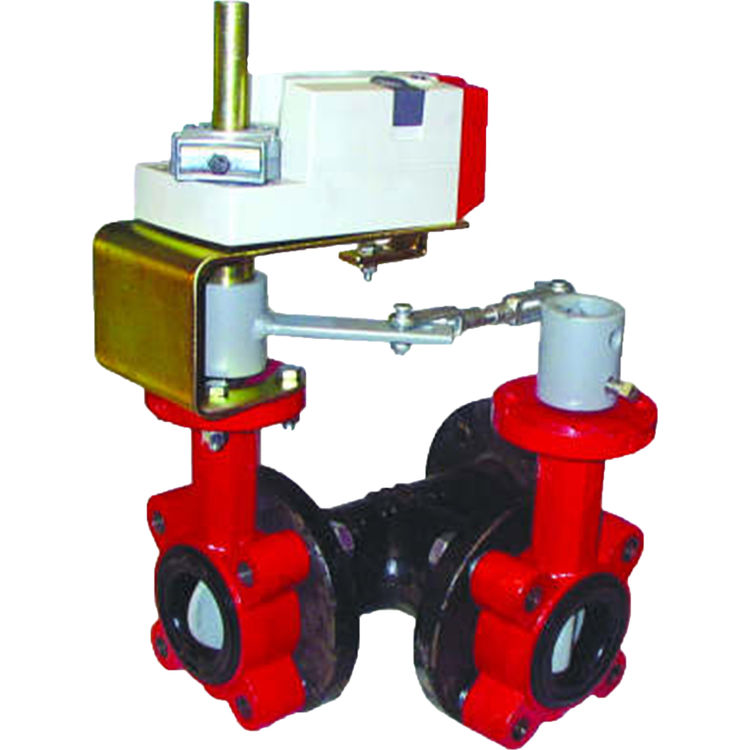

Honeywell VFF3FW1Y2A 3-WAY (A-B-AB) 2 Inch Flanged Butterfly Valve

SKU: 379089

Save 58% · Retail: $1,529.70

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell VFF3FW1Y2A

THE Honeywell VFF3FW1Y2A 3-WAY (A-B-AB) 2 Inch Resilient-Seat Flanged Bidirectional Butterfly Valve is a certified and approved product of Honeywell. This three way valve is ideal for high water applications like chilled water, hot water, cooling tower water and thermal storage processing. One of the best feature this valve has is that this Honeywell Butterfly Valve, allows you to transfer as much as 20,000 gallons per minute from a 20’valve. The Honeywell VFF3FW1Y2A 3-WAY (A-B-AB) 2 Inch Resilient-Seat Flanged Butterfly Valve features a single actuator that synchronizes disc positions, and Nylon coating which offers reduced valve friction. This valve also includes Position indicator and, thanks to the resilient-seat technology offered in many Honeywell valves, the Honeywell VFF3FW1Y2A 3-WAY (A-B-AB) 2 Inch Resilient-Seat Flanged Bidirectional Butterfly Valve has a close off rating that has three times the closing force of valves that have been available previously. It gives you the flexibility to decide on the precise, most cost-effective actuator for your application. This product is compact enough to handle easily, and yet engineered for durability and reliability. With a high rate of flow capacity and manual or end of line shut off applications. The Honeywell 3-WAY Butterfly Valve will meet and even exceed your HVAC application expectations.

Product Details

Product: Butterfly
Manufacturer: Honeywell
Style: 3 Way
Connection Type: Flanged
Trade Tools: HVAC
Use: Water
Color: Red
Electrical Voltage: 24 Volt
Mpn # VFF3FW1Y2A
Shipping Dimensions 11.0" x 6.0" x 15.0"
Weight 40.70 lbs.

Product Features

  • Assembly--Length: 11 in.; Height: 15-5/16 in.; Width: 6-13/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • NEMA 2 housing
  • Actuator-- -5 F to 140 F
  • Actuator-- -20 C to 60 C
  • Lugged
  • 3 way (A-B-AB porting)
  • 2 in.
  • DN50
  • 175 psi
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • Assembly--Length: 279 mm; Height: 389 mm; Width: 173 mm; Neck: 140 mm; Radius; 58 mm
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • Electric floating, Non-Spring Return Floating control
  • 250 psi Maximum
  • 40.7 lb
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 18.5 kg
  • ANSI Flanged
  • C/US UL873, Plenum Rated
  • -40 F to 250 F
  • -40 C to 121 C
  • Compliant
