Honeywell VFF3FW1Y2C Honeywell VFF3FW1Y2C/M 3-Way, 2

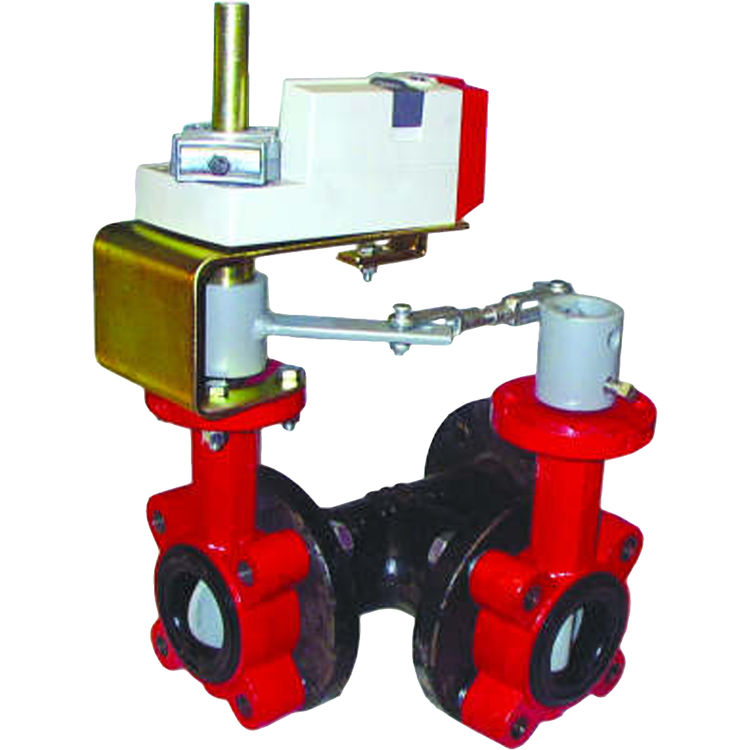

Honeywell VFF3FW1Y2C/M 3-Way, 2" Resilient-Seat Flanged Butterfly Valve

SKU: 379091

This product is not currently available for purchase.

About the Honeywell VFF3FW1Y2C/M 3-Way, 2" Resilient-Seat Flanged Butterfly Valve

Honeywell VFF3FW1Y2C/M 3-Way, 2in Resilient-Seat Flanged Butterfly Valve. These resilient seat Three-Way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

Product: Butterfly
Style: 3 Way
Manufacturer: Honeywell
Connection Type: Flanged
Mpn # VFF3FW1Y2C
Weight 1.00 lbs.
  • Assembly--Length: 11 in.; Height: 15-5/16 in.; Width: 6-13/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • -40 C to 121 C
  • 89/336/ECC, 73/23/EEC
  • NEMA 2 housing
  • Actuator-- -40 F to 140 F
  • Actuator-- -40 C to 60 C
  • N314
  • Lugged
  • 3 way (A-B-AB porting)
  • 2 in.
  • DN50
  • Assembly--Length: 279 mm; Height: 389 mm; Width: 173 mm; Neck: 140 mm; Radius; 58 mm
  • 175 psi
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • 44.1 lb
  • Modified Equal Percent
  • Electric 2-position, Spring Return 2-Position, 24 Vac
  • 250 psi Maximum
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 20 kg
  • ANSI Flanged
  • UL873, Plenum Rated
  • C/US C22.2 No. 24-93
  • 24 Vac
  • -40 F to 250 F
