Honeywell VFF6FW1Y2A Honeywell VFF6FW1Y2A/M 3-Way 2

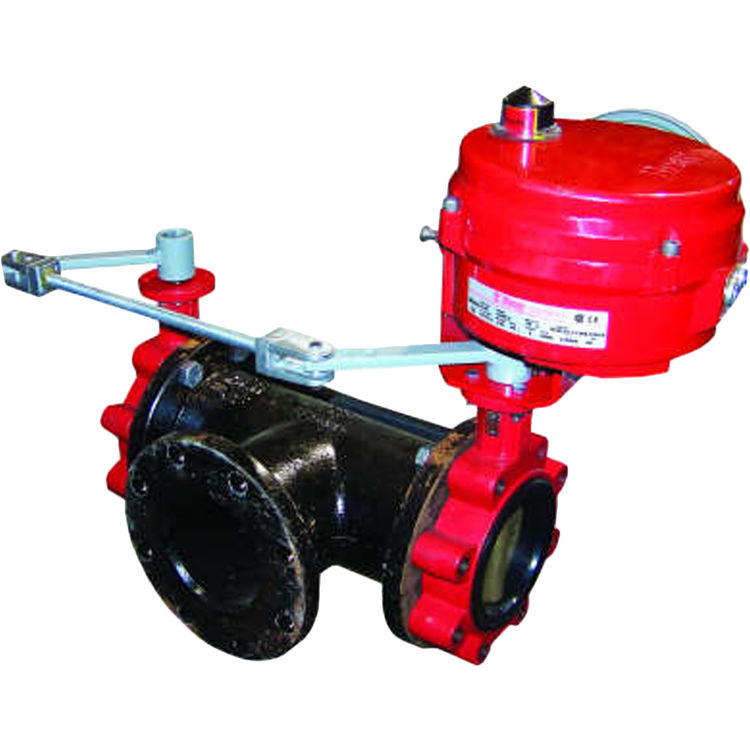

Honeywell VFF6FW1Y2A/M 3-Way 2" Resilient Seat Butterfly Valve - Full Cut Disk, NEMA 2, Floating/2-Position

SKU: 379399

This product is not currently available for purchase.

About the Honeywell VFF6FW1Y2A/M 3-Way 2" Resilient Seat Butterfly Valve - Full Cut Disk, NEMA 2, Floating/2-Position

Shop the Honeywell VFF6FW1Y2A/M Three-Way 2" Flanged Resilient Seat Butterfly Valve (Full Cut Disk, NEMA 2, Floating/2-Position) at PlumbersStock. What you should know about this butterfly valve: it's flanged with 3-way porting (an A-AB-B configuration), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a NEMA 2 direct coupled actuator enclosure, and a Floating/2-position (24 V NEMA 2, 120V NEMA 4X/6) actuator.

Product: Butterfly
Manufacturer: Honeywell
Style: 3 Way
Connection Type: Flanged
Mpn # VFF6FW1Y2A
Weight 1.00 lbs.
  • Assembly--Length: 11 in.; Height: 15-5/16 in.; Width: 6-13/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • NEMA 2 housing
  • Actuator-- -5 F to 140 F
  • Actuator-- -20 C to 60 C
  • Lugged
  • 3 way (A-AB-B porting)
  • 2 in.
  • DN50
  • 175 psi
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • Assembly--Length: 279 mm; Height: 389 mm; Width: 173 mm; Neck: 140 mm; Radius; 58 mm
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • Electric floating, Non-Spring Return Floating control
  • 250 psi Maximum
  • 40.7 lb
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 18.5 kg
  • ANSI Flanged
  • C/US UL873, Plenum Rated
  • -40 F to 250 F
  • -40 C to 121 C
  • Compliant
