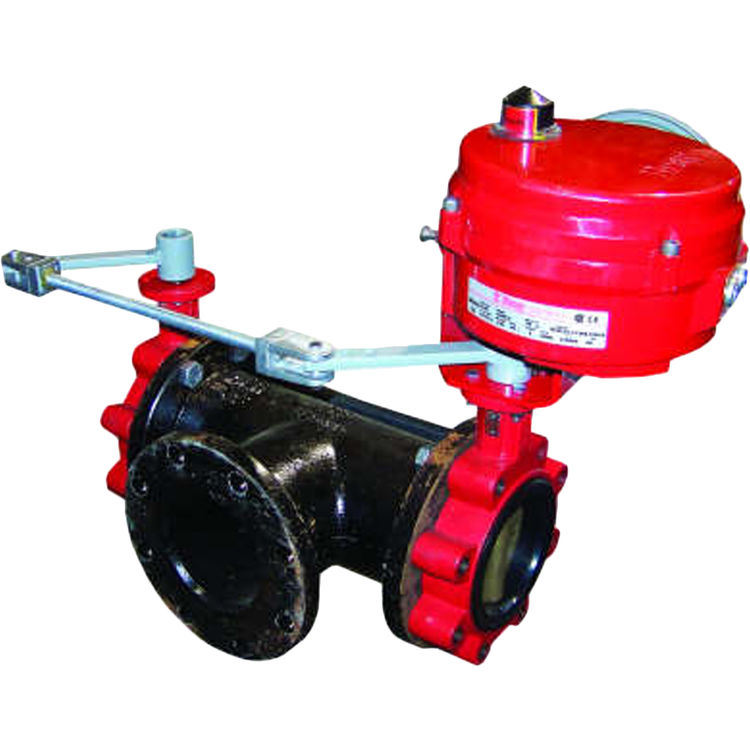

Honeywell VFF6FW1Y2D/M 3-Way 2" Flanged Butterfly Valve

SKU: 379402

$660.03/ea
Save 59% · Retail: $1,624.69

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$660.03/ea

About the Honeywell VFF6FW1Y2D

Honeywell VFF6FW1Y2D/M 3-Way 2in Flanged Butterfly Valve. These resilient seat Three-Way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

Product Details

Product: Butterfly
Manufacturer: Honeywell
Type:
Style: 3 Way
Size:
Connection Type: Flanged
Mpn # VFF6FW1Y2D

Product Features

  • Assembly--Length: 11 in.; Height: 15-5/16 in.; Width: 6-13/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • DN50
  • 175 psi
  • Assembly--Length: 279 mm; Height: 389 mm; Width: 173 mm; Neck: 140 mm; Radius; 58 mm
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • 89/336/ECC, 73/23/EEC
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • 47.1 lb
  • Electric floating; Electric modulating, Spring Return Floating/Modulating control
  • 250 psi Maximum
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 21.4 kg
  • NEMA 2 housing
  • ANSI Flanged
  • UL873, Plenum Rated
  • C/US C22.2 No. 24-93
  • -40 F to 250 F
  • -40 C to 121 C
  • Actuator-- -40 F to 140 F
  • Actuator-- -40 C to 60 C
  • N314
  • Lugged
  • 3 way (A-AB-B porting)
  • 2 in.
