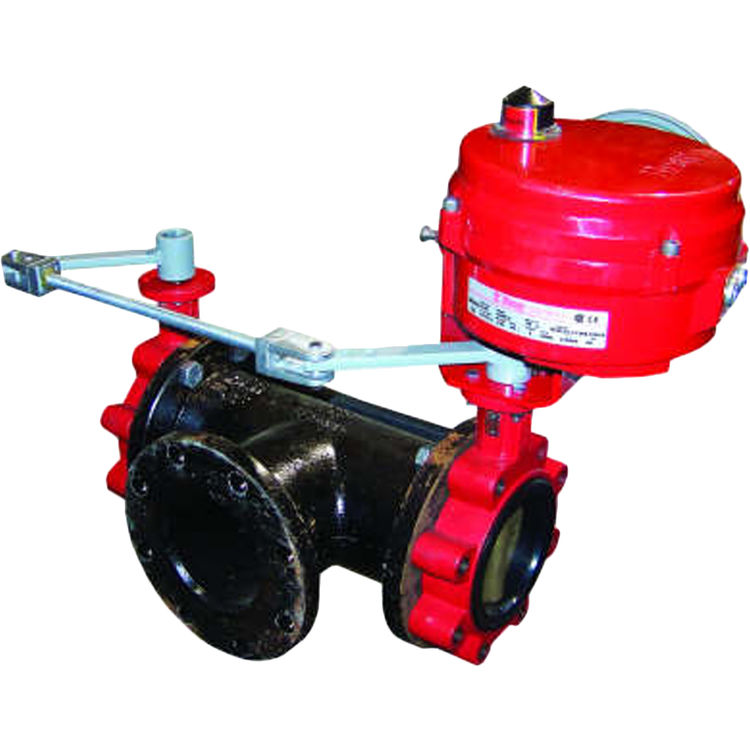

Honeywell VFF6FW1Y8P/M 3-Way 2" Flanged Butterfly Valve

SKU: 379404

$509.06/ea
Save 60% · Retail: $1,268.61

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$509.06/ea

About the Honeywell VFF6FW1Y8P

Honeywell VFF6FW1Y8P/M 3-Way 2in Flanged Butterfly Valve. These resilient seat Three-Way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

Product Details

Product: Butterfly
Manufacturer: Honeywell
Type:
Style: 3 Way
Size:
Connection Type: Flanged
Mpn # VFF6FW1Y8P

Product Features

  • Assembly--Length: 11 in.; Height: 10-15/16 in.; Width: 10-1/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • at 60 degrees stroke--61 Cv; Stroke limited to 70 degrees
  • at 60 degrees stroke--53 kvs; Stroke limited to 70 degrees
  • Assembly--Length: 279 mm; Height: 277 mm; Width: 258 mm; Neck: 140 mm; Radius; 58 mm
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • Actuator-- -20 F to 150 F
  • Pneumatic, 20 psi spring return
  • 250 psi Maximum
  • 1724 kPa Maximum
  • 44.7 lb
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 20.3 kg
  • Linear actuator, stroke limited to 70 degrees
  • ANSI Flanged
  • -40 F to 250 F
  • Actuator-- -29 C to 66 C
  • -40 C to 121 C
  • Pneumatic
  • Lugged
  • 3 way (A-AB-B porting)
  • 2 in.
  • DN50
  • 175 psi
  • 1206 kPa
