Honeywell VFF6FW1YDR Honeywell VFF6FW1YDR/M 3-Way 2

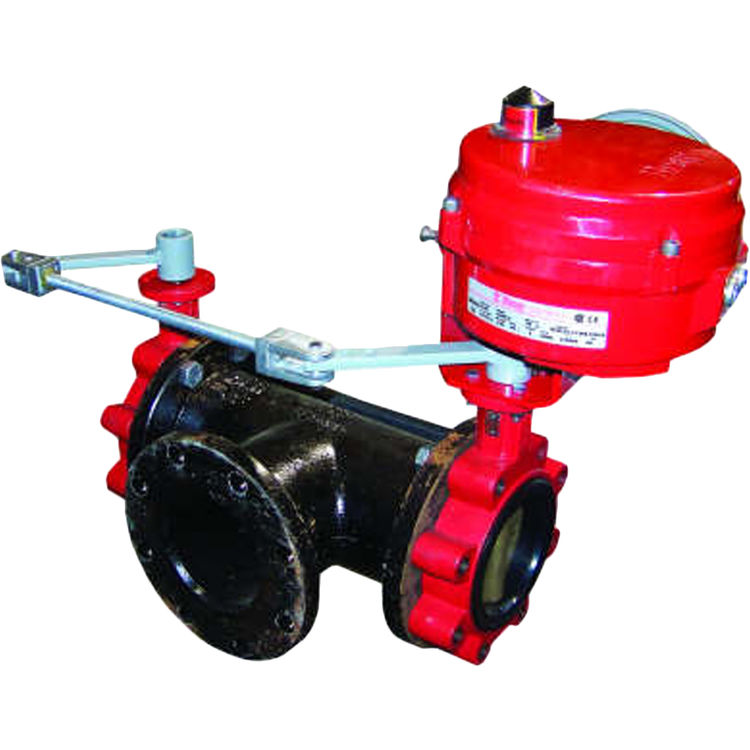

Honeywell VFF6FW1YDR/M 3-Way 2" Resilient Seat Butterfly Valve - Full Cut Disk, Electron-Pneumatic, High Pressure Bi-Directional

SKU: 379407

This product is not currently available for purchase.

About the Honeywell VFF6FW1YDR/M 3-Way 2" Resilient Seat Butterfly Valve - Full Cut Disk, Electron-Pneumatic, High Pressure Bi-Directional

Now at a discount, purchase the Honeywell VFF6FW1YDR/M Three-Way 2" Flanged Resilient Seat Butterfly Valve (Full Cut Disk, Electron-Pneumatic Positioner, High Pressure Bi-Directional) at PlumbersStock.com. What you should know before you purchase this resilient seat valve: it's flanged, with 3-way porting (A-AB-B), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a Electron-pneumatic positioner actuator enclosure, and a High pressure pneumatic bi-directional (push-pull) actuator.

Product: Butterfly
Manufacturer: Honeywell
Style: 3 Way
Connection Type: Flanged
Mpn # VFF6FW1YDR
Weight 1.00 lbs.
  • Assembly--Length: 14-13/16 in.; Height: 19-1/8 in.; Width: 6-13/16 in.; Neck: 5-1/2 in.; Radius; 2-1/4 in.
  • Pneumatic
  • Actuator-- -40 F to 176 F
  • Actuator-- -40 C to 80 C
  • Lugged
  • 3 way (A-AB-B porting)
  • 2 in.
  • DN50
  • 175 psi
  • 1206 kPa
  • at 60 degrees stroke--61 Cv; at 90 degrees stroke--144 Cv
  • Assembly--Length: 376 mm; Height: 485 mm; Width: 173 mm; Neck: 140 mm; Radius; 58 mm
  • at 60 degrees stroke--53 kvs; at 90 degrees stroke--125 kvs
  • Normally Closed
  • Butterfly
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Polyester-coated cast iron ASTM A126 Class B
  • Peroxide-cured EPDM resilient seat
  • 416 Stainless Steel
  • Modified Equal Percent
  • Pneumatic, 4-20 mA Servo 80 psi bidirectional
  • 250 psi Maximum
  • Position indicator
  • 1724 kPa Maximum
  • 4, Flange Bolt Thread--5/8 in. -11 pitch
  • Nylon 11-coated ductile iron
  • 668.3 lb
  • 303.8 kg
  • ANSI Flanged
  • 4-20 mA
  • -40 F to 250 F
  • -40 C to 121 C
