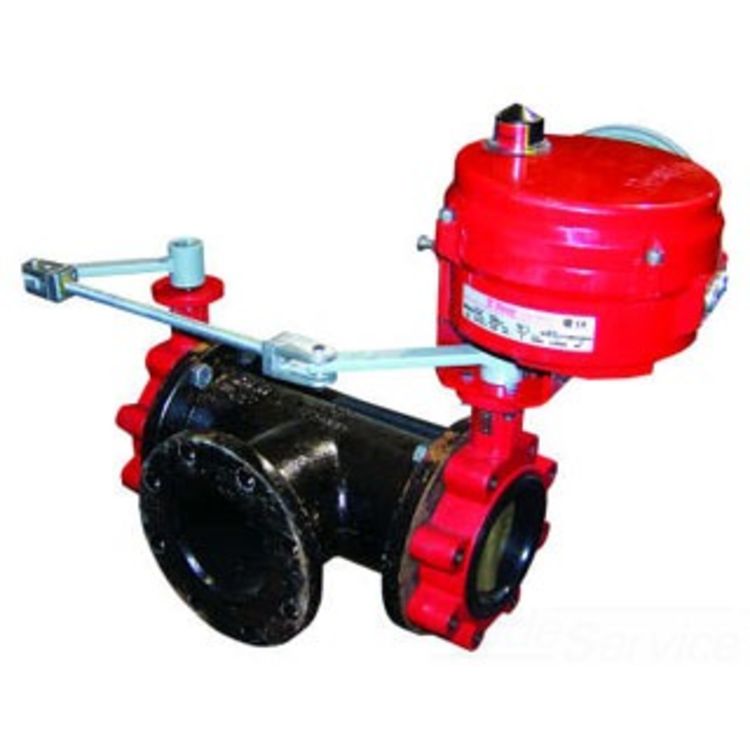

Honeywell VFF6GW1Y2E 2.5" Resilient Seat Butterfly Valve

SKU: 379421

This product is not currently available for purchase.

About the Honeywell VFF6GW1Y2E 2.5" Resilient Seat Butterfly Valve

Get a discount on the Honeywell VFF6GW1Y2E Resilient Seat Butterfly Valve here at PlumbersStock. This resilient seat butterfly valve is flanged, with 3-way porting (A-AB-B), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a NEMA 2 direct coupled actuator enclosure, and a 120 Vac 2-position spring return actuator. It's a stainless steel valve stem that has an actuator that provides minimum torque required for full valve shut-off position. This valve uses a flexible seat design and nylon disk coating that prevents metal valve parts from being unprotected from chemicals in the water. it will be suitable for the control of hot water or chilled-water solutions. The flow control characteristic of this valve can be adjusted for an equal ratio or percentage. It uses cast iron valve body polyester-coated that is built for tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The cast iron disk of this valve uses Nylon 11-coated that is completely protected from corrosion that lessens friction. Honeywell replacement parts can be hard to find, so contact us if you have any problems.

Trade Tool Type: HVAC
Manufacturer: Honeywell
Style: 3 Way
Product: Butterfly
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VFF6GW1Y2E
Weight 1.00 lbs.
  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bi-directional flow.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (“tri-state”), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
