Honeywell VFF6GW1YXA Honeywell VFF6GW1YXA 3-Way 2.5

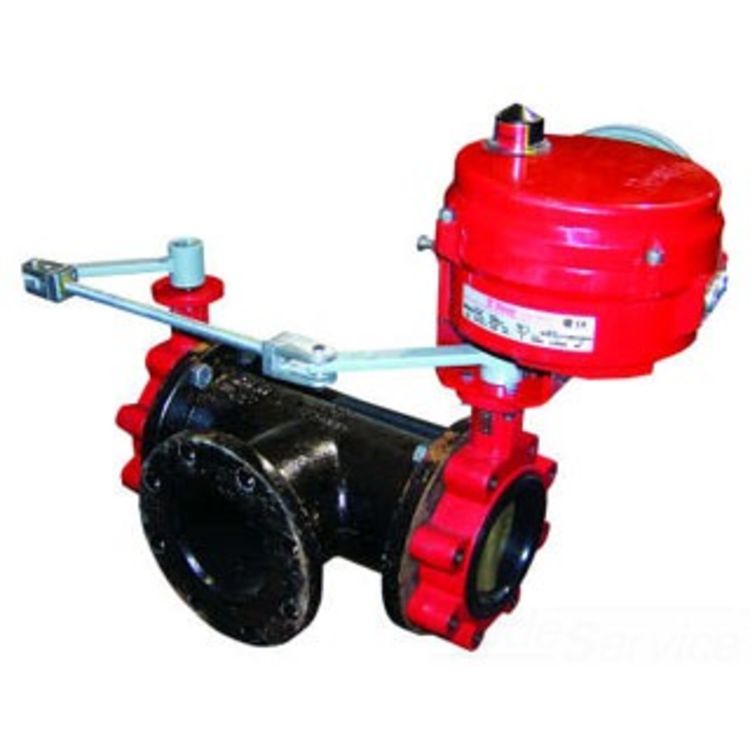

Honeywell VFF6GW1YXA 3-Way 2.5" Resilient Seat Butterfly Valve - Full Cut Disk, NEMA 4X, Floating/2-Position

SKU: 379432

This product is not currently available for purchase.

About the Honeywell VFF6GW1YXA 3-Way 2.5" Resilient Seat Butterfly Valve - Full Cut Disk, NEMA 4X, Floating/2-Position

Discount deals available when you purchase the Honeywell VFF6GW1YXA/M Three-Way 2.5" Flanged Resilient Seat Butterfly Valve (Full Cut Disk, NEMA 4X, Floating/2-Position) at the PlumbersStock store. Before you buy, make sure it has all the right features: this flanged valve comes with 3-way porting (an A-AB-B configuration), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a NEMA 4X waterproof, corrosion-resistant actuator enclosure, and a Floating/2-position (24 V NEMA 2, 120V NEMA 4X/6) actuator.The Honeywell VFF6GW1YXA is a stainless steel valve stem that has an actuator that provides minimum torque required for full valve shut-off position. This Honeywell valve uses a flexible seat design and nylon disk coating that prevents metal valve parts from being unprotected to chemicals in the water. With this design it will be suitable for control of hot water or chilled-water solutions. The flow control characteristic of this valve can be adjusted for equal ratio or percentage. The Honeywell VFF6GW1YXA uses cast iron valve body polyester-coated that is built for tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The cast iron disk of this valve uses Nylon 11-coated that is completely protected to corrosion that lessens friction. The construction of Honeywell VFF6GW1YXA makes it an easy choice for chilled water systems. Field or outdoor applications for electrical and electronic actuators is also available with weatherproof covers. The technology it uses prevents condensation that is vital to an efficient and well run chiller systems and other high-water-flow applications. Honeywell butterfly valves are tightly packed and easy to control, yet skillfully built for long-lasting, reliable performance.

Trade Tool Type: HVAC
Manufacturer: Honeywell
Style: 3 Way
Product: Butterfly
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VFF6GW1YXA
Weight 1.00 lbs.
  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bi-directional flow.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (“tri-state”), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
