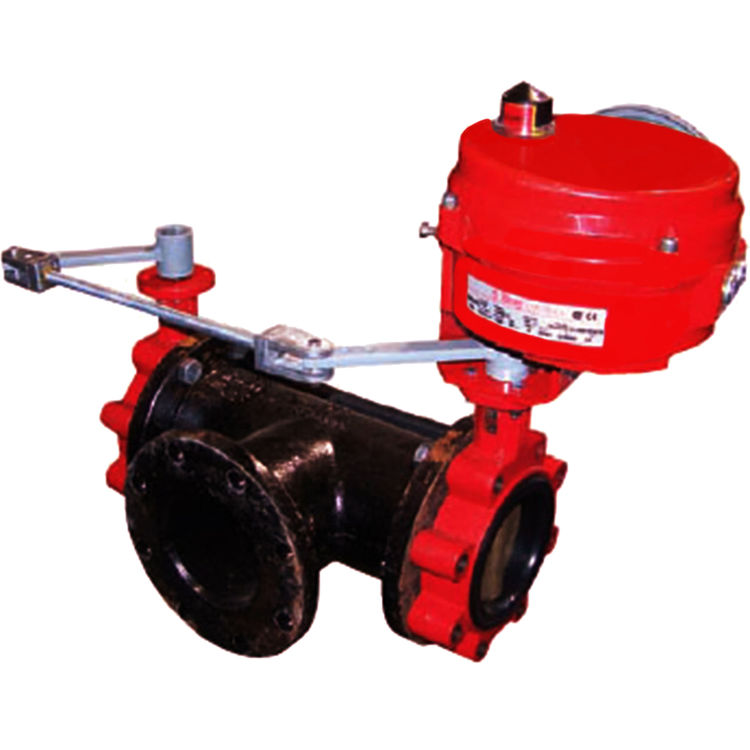

Honeywell VFF6MW1YCS 3-Way 8" Resilient Seat Butterfly Valve - Full Cut Disk, 24 Vac, High Pressure Pneumatic Spring Return

SKU: 379568

This product is not currently available for purchase.

About the Honeywell VFF6MW1YCS 3-Way 8" Resilient Seat Butterfly Valve - Full Cut Disk, 24 Vac, High Pressure Pneumatic Spring Return

Save lots buying the Honeywell VFF6MW1YCS/M Three-Way 8" Flanged Resilient Seat Butterfly Valve (Full Cut Disk, 24 Vac Solenoid, High Pressure Pneumatic Spring Return) with PlumbersStock. Before you buy, make sure it has all the right features: this flanged valve comes with 3-way porting (an A-AB-B configuration), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a 24 Vac solenoid actuator enclosure, and a High pressure pneumatic spring return actuator. The VFF6MW1YCS has a stainless steel valve stem that features an actuator which provides the perfect amount of torque required to put the valve in the shut-off position. The valve contains a cast iron disk which has a Nylon 11-Coating that protects the valve from corrosion and even lessens possible friction. With this design, it can be used for control of either hot water or chilled-water solutions. It even has a flow control characteristic which can be adjusted for equal ratio or percentage. When it comes to valve durability, the VFF6MW1YCS has a polyester-coated cast iron valve body that is built for wear and tear such as; tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The construction of this valve makes it a fantastic choice for a chilled water system. If you're going to use this valve with a field or outdoor application, weatherproof covers are available in order to protect any electrical components. The Butterfly Valves operation plays a vital role in preventing condensation which can harm your chiller system. Honeywell butterfly valves are tightly packed and easy to control, yet skillfully built for long-lasting, reliable performance.

Trade Tool Type: HVAC
Manufacturer: Honeywell
Style: 3 Way
Product: Butterfly
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VFF6MW1YCS
Weight 1.00 lbs.
  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bi-directional flow.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (“tri-state”), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
