Honeywell VFF6NV1YXB Honeywell VFF6NV1YXB 3-Way 10

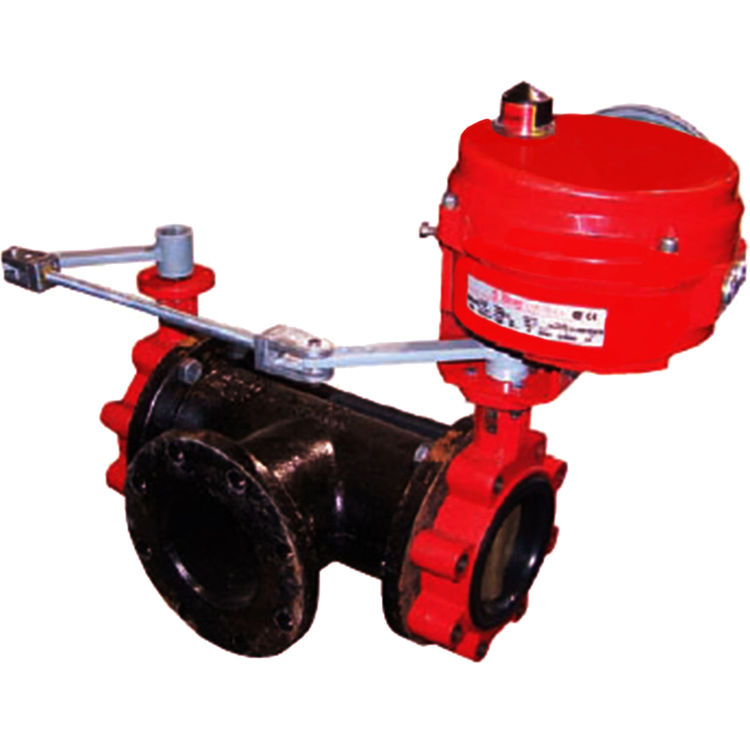

Honeywell VFF6NV1YXB 3-Way 10" Resilient Seat Butterfly Valve - Undercut Disk, NEMA 4X, Modulating 0/2 - 10Vdc

SKU: 379588

This product is not currently available for purchase.

About the Honeywell VFF6NV1YXB 3-Way 10" Resilient Seat Butterfly Valve - Undercut Disk, NEMA 4X, Modulating 0/2 - 10Vdc

You will enjoy saving on the Honeywell VFF6NV1YXB/M Three-Way 10" Flanged Resilient Seat Butterfly Valve (Undercut Disk, NEMA 4X, Modulating 0/2 - 10Vdc) from the PlumbersStock store. Before you buy, make sure it has all the right features: this flanged valve comes with 3-way porting (an A-AB-B configuration), with an undercut disk (50 psi close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a NEMA 4X waterproof, corrosion-resistant actuator enclosure, and a Modulating 0/2 - 10Vdc (24 V NEMA 2, 120V NEMA 4X/6) actuator. The VFF6NV1YXB has a stainless steel valve stem that features an actuator which provides the perfect amount of torque required to put the valve in the shut-off position. The valve contains a cast iron disk which has a Nylon 11-Coating that protects the valve from corrosion and even lessens possible friction. With this design, it can be used for control of either hot water or chilled-water solutions. It even has a flow control characteristic which can be adjusted for equal ratio or percentage. When it comes to valve durability, the VFF6NV1YXB has a polyester-coated cast iron valve body that is built for wear and tear such as; tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The construction of this valve makes it a fantastic choice for a chilled water system. If you're going to use this valve with a field or outdoor application, weatherproof covers are available in order to protect any electrical components. The Butterfly Valves operation plays a vital role in preventing condensation which can harm your chiller system. Honeywell butterfly valves are tightly packed and easy to control, yet skillfully built for long-lasting, reliable performance.

Trade Tool Type: HVAC
Manufacturer: Honeywell
Style: 3 Way
Product: Butterfly
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VFF6NV1YXB
Weight 1.00 lbs.
  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bi-directional flow.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (“tri-state”), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
