Honeywell VFF6SW1YDR Honeywell VFF6SW1YDR 3-Way 16

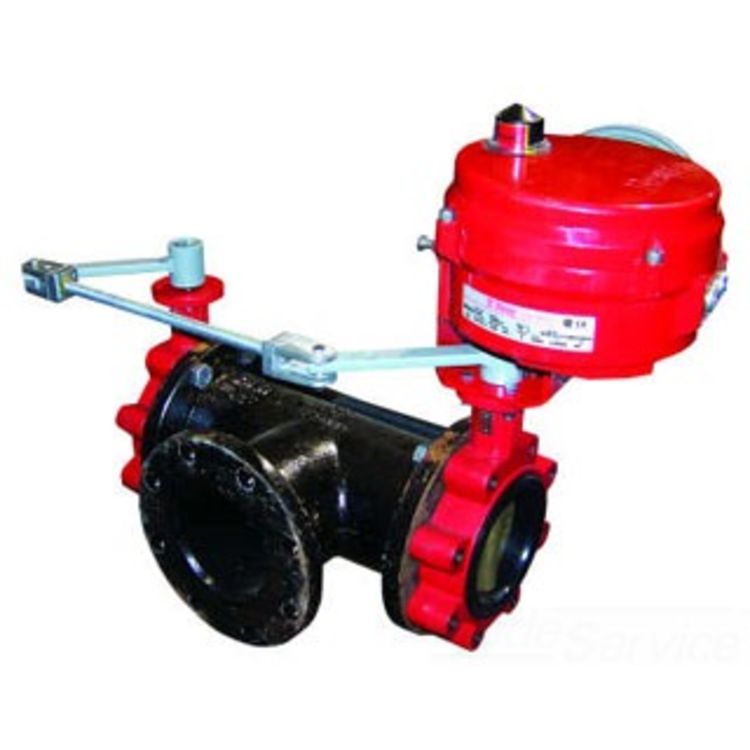

Honeywell VFF6SW1YDR 3-Way 16" Resilient Seat Butterfly Valve - Full Cut Disk, Electron-Pneumatic, High Pressure Bi-Directional

SKU: 379666

This product is not currently available for purchase.

About the Honeywell VFF6SW1YDR 3-Way 16" Resilient Seat Butterfly Valve - Full Cut Disk, Electron-Pneumatic, High Pressure Bi-Directional

Shop deals on the Honeywell VFF6SW1YDR/M Three-Way 16" Flanged Resilient Seat Butterfly Valve (Full Cut Disk, Electron-Pneumatic Positioner, High Pressure Bi-Directional) here at PlumbersStock.com. Things you should be aware of: this valve is flanged with 3-way porting (an A-AB-B configuration), with a full cut disk (high close-off), up to 175 psi close-off temperature rating, the trim is nylon 11-coated disk, EPDM seat/seal, a Electron-pneumatic positioner actuator enclosure, and a High pressure pneumatic bi-directional (push-pull) actuator. The VFF6SW1YDR has a stainless steel valve stem that features an actuator which provides the perfect amount of torque required to put the valve in the shut-off position. The valve contains a cast iron disk which has a Nylon 11-Coating that protects the valve from corrosion and even lessens possible friction. With this design, it can be used for control of either hot water or chilled-water solutions. It even has a flow control characteristic which can be adjusted for equal ratio or percentage. When it comes to valve durability, the VFF6SW1YDR has a polyester-coated cast iron valve body that is built for wear and tear such as; tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The construction of this valve makes it a fantastic choice for a chilled water system. If you're going to use this valve with a field or outdoor application, weatherproof covers are available in order to protect any electrical components. The Butterfly Valves operation plays a vital role in preventing condensation which can harm your chiller system. Honeywell butterfly valves are tightly packed and easy to control, yet skillfully built for long-lasting, reliable performance.

Mpn # VFF6SW1YDR
Weight 1.00 lbs.
