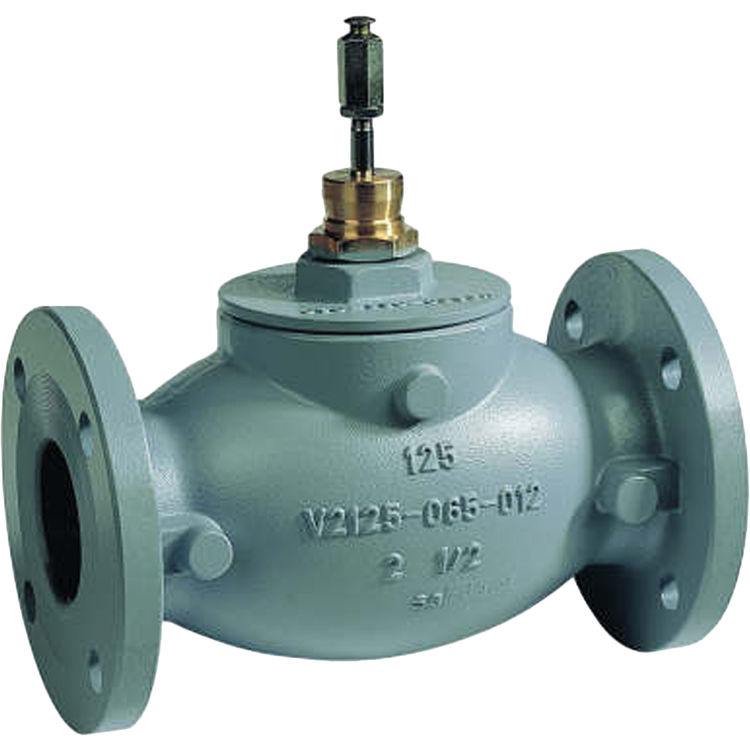

About the Honeywell VGF21EP30

The Honeywell VGF21EP30 2-Way 3 inch Flanged Globe Valve. This valve is an ANSI class 125 cast iron bodies with flanged end connections. It is used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. This valve also has an accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control. It is made of stainless steel trim standard for long life span. This Honeywell VGF21EP30 2-Way 3 inch Flanged Globe Valve has a self-adjusting packing, steam inlet pressure up to 125 psig and 353 F maximum temperatures. It is a universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled modutrolâ„¢ motors and MN/MS series direct coupled actuators. The Honeywell VGF21EP30 2-Way 3 inch Flanged Globe Valve has a face-to-face flange dimensions per ANSI/ISA S75.03 standard and a constant total flow throughout full plug travel (3-way bodies). Honeywell is recognized for its Global Presence in HVAC (heating, Ventilation, Air Conditioning) products. Honeywell is known for its leadership, invention and manufacturing technologies. They have an unrelenting focus on performance, quality, delivery, value and technology in everything they make and do.

Product Details

Product: Globe
Manufacturer: Honeywell
Use: Water
Type:
Style: 2 Way
Size:
Electrical Voltage: 24 Volt
Connection Type: Flanged
Trade Tools: HVAC
Mpn # VGF21EP30
Weight 113.00 lbs.

Product Features

  • 11-3/4 in. lenght x 7-1/2 in. width x 12-3/4in.H
  • Stem down to close
  • Globe Valve
  • 298 mm lenght x 191 mm width x 322 mm height
  • Chilled or hot water with up to 50% Glycol or Steam. Not for use with fuels.
  • Cast Iron ASTM A126 Class B
  • Stainless Steel
  • Equal Percentage
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • DN80
  • 3/4 in.
  • 20 mm
  • 35 mm
  • 175 psig
  • Spring-loaded PTFE cone rings
  • 0.01% of Cv
  • 1206 kappa
  • ML642X/ML742X; ML6984/ML7984; MP953 (7-1/8 to 13")
  • Pressure-balanced. Minimum actuator force is 135# (600N); Direct acting
  • Flanged
  • -7 C to +120 C, steam 180 C
  • Two-way
  • 3 in.
  • 20 F to 250 F, steam 353 F
  • 1-3/8 in.
  • 175 psi
  • 1206 kPa
  • 115 Cv
  • 99 kvs
