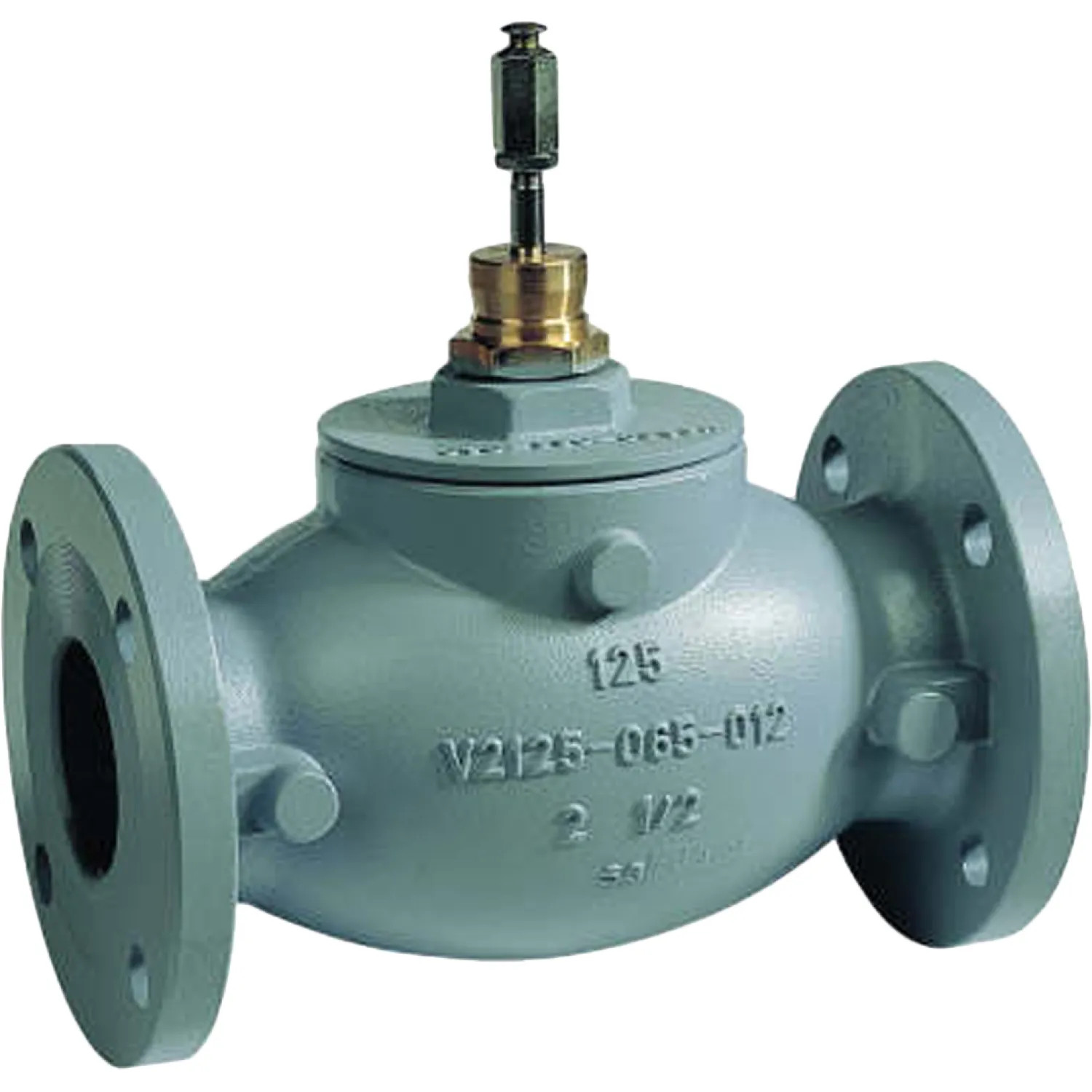

The Honeywell VGF21LS50 2-Way Flanged Globe/mixing Valve, 5 Inch

SKU: 379726

 Free Shipping!
Save 58% · Retail: $4,145.27

In Stock and Ready to Ship

Ships From Price Qty
Illinois Warehouse
Ships in 5-7 Days
$1,751.38/ea 1
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VGF21LS50

The Honeywell 5 inches VGF21EP25 2-Way Flanged Globe Valve. This valve is an ANSI class 125 cast iron bodies with flanged end connections. It is used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. This valve also has an accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control. It is made of stainless steel trim standard for long life span. This Honeywell 5 inches VGF21EP25 2-Way Flanged Globe Valve has a self-adjusting packing, steam inlet pressure up to 125 psig and 353 F maximum temperatures. It is a universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled modutrolâ„¢ motors and MN/MS series direct coupled actuators. The Honeywell 5 inches VGF21EP25 2-Way Flanged Globe Valve has a face-to-face flange dimensions per ANSI/ISA S75.03 standard and a constant total flow throughout full plug travel (3-way bodies). It offers best in class size, Cv range and close-off pressure, and a precise controlforanyapplication. Honeywell is recognized for its Global Presence in HVAC (heating, Ventilation, Air Conditioning) products. Honeywell is known for its leadership, invention and manufacturing technologies. They have an unrelenting focus on performance, quality, delivery, value and technology in everything they make and do.

Product Details

Product: Globe
Style: 2 Way
Trade Tool Type: HVAC
Use: Water
Electrical Voltage: 24 Volt
Manufacturer: Honeywell
Connection Type: Flanged
Mpn # VGF21LS50
Weight 87.00 lbs.

Product Features

  • 15-3/4 in. lenght x 10 in. width x 12-3/8 in. height
  • DN125
  • -7 C to +120 C, steam 180 C
  • 20 F to 250 F, steam 353 F
  • 1-7/8 in.
  • 13 psi
  • 90 kPa
  • 320 Cv
  • 274 kvs
  • Stem down to close
  • Globe Valve
  • 400 mm lenght x 254 mm width x 314 mm height
  • Chilled or hot water with up to 50% Glycol or Steam. Not for use with fuels.
  • Cast Iron ASTM A126 Class B
  • Stainless Steel
  • Linear
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • 1 1/2 in.
  • 38 mm
  • 47.6 mm
  • 175 psig
  • Spring-loaded PTFE cone rings
  • 0.05% of Cv
  • 1206 kappa
  • ML6421B; ML7421B; Q5001/Modutrol IV Motor; MP953
  • Direct acting
  • Flanged
  • Two-way
  • 5 in.
