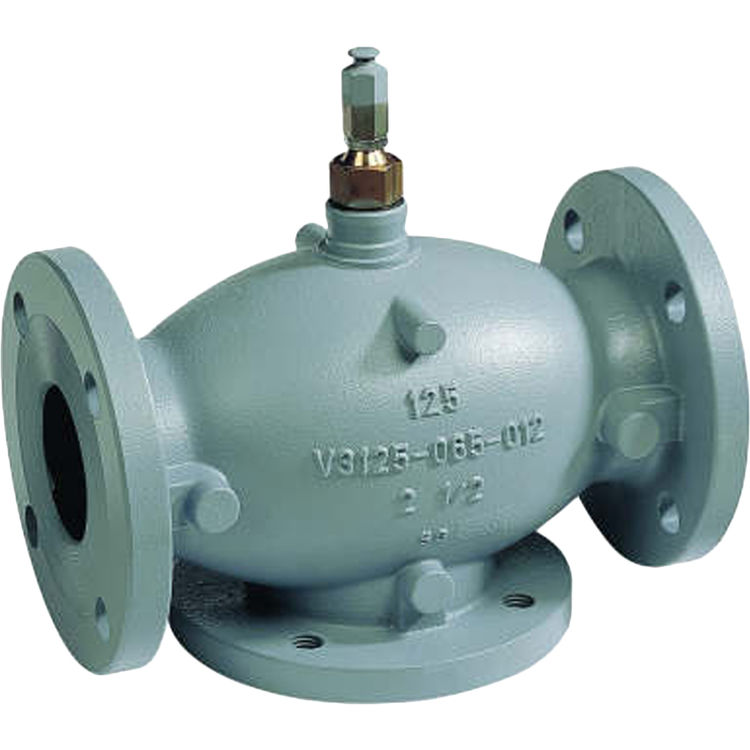

Honeywell VGF31EM60 3-Way Flanged Globe/Mixing Valve, 6 Inch

SKU: 379737

 Free Shipping!
Save 58% · Retail: $4,692.26

In Stock and Ready to Ship

Ships From Price Qty
Long Island Warehouse
Ships in 1-4 Days
$1,982.48/ea 3
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell VGF31EM60

Honeywell VGF31EM60 3-Way 6 inch mixes Flange Globe Valve. This valve is an ANSI class 125 cast iron bodies with flanged end connections with linear flow. It is used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. This valve also has an accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control. It is made of stainless steel trim standard for long life span. This Honeywell VGF31EM60 3-Way 6 inches mix Flange Globe Valve has a self-adjusting packing, steam inlet pressure up to 125 psig and 353 F maximum temperatures. It is a universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled modutrolâ„¢ motors and MN/MS series direct coupled actuators. The Honeywell VGF31EM60 3-Way 6 inches mix Flange Globe Valve has a face-to-face flange dimensions per ANSI/ISA S75.03 standard and a constant total flow throughout full plug travel (3-way bodies). It offers best in class size, CV range and close-off pressure, and a precise control for any application. Honeywell was known for its Leadership, invention and manufacturing technologies. Honeywell have unrelenting focus on performance, quality, delivery, value and technology in everything they make and do.

Product Details

Product: Globe
Manufacturer: Honeywell
Style: 3 Way
Trade Tools: HVAC
Use: Water
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VGF31EM60
Shipping Dimensions 12.0" x 11.0" x 17.0"
Weight 3.40 lbs.
Shipping Dimensional Weight 12.72 lbs.

Product Features

  • 17-3/4 in. lenght x 11 in. width x 12-3/8 in. height
  • DN150
  • -7 C to +120 C
  • 20 F to 250 F
  • 1-7/8 in.
  • 13 psi
  • 90 kPa
  • 370 Cv
  • 317 kvs
  • Mixing, step up to close A-AB
  • Globe Valve
  • 451 mm lenght x 279 mm width x 314 mm height
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Cast Iron ASTM A126 Class B
  • Stainless Steel
  • Equal Percentage (A-AB)
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • 1 1/2 in.
  • 38 mm
  • 47.6 mm
  • 175 psig at 130 F (66 C)
  • Spring-loaded PTFE cone rings
  • Port A seat leakage: 0.5%; Port B seat leakage 1.0%; For Supply mixing control; use diverting value for boiler/chiller bypass
  • 1206 kPa at 66 C (130 F)
  • ML6421B; ML7421B; Q5001/Modutrol IV Motor; MP953
  • Stem up to close A-AB
  • Flanged
  • Three-way
  • 6 in.
