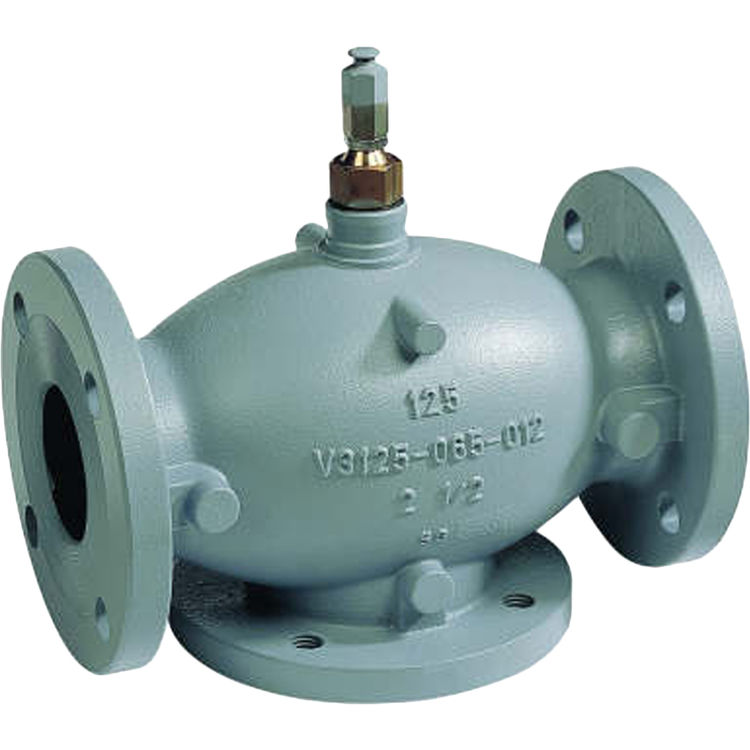

Honeywell VGF31LD25 3-Way Flanged Globe/Mixing Valve, 2-1/2 Inch

SKU: 379738

Save 58% · Retail: $1,721.58

In Stock and Ready to Ship

Ships From Price Qty
Illinois Warehouse
Ships in 3-5 days
$727.36/ea 2
Long Island Warehouse
Ships in 5-7 Days
$727.36/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VGF31LD25

The Honeywell VGF31LD25 2 ½ inches 3-Way diverting Flange Globe Valve. This valve is an ANSI class 125 cast iron bodies with flanged end connections with linear flow. It is used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. This valve also has an accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control. It is made of stainless steel trim standard for long life span. This Honeywell VGF31LD25 2 ½ inches 3-Way diverting Flange Globe Valve has a self-adjusting packing, steam inlet pressure up to 125 psig and 353 F maximum temperatures. It is a universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled modutrol™ motors and MN/MS series direct coupled actuators. The Honeywell VGF31LD25 2 ½ inches 3-Way diverting Flange Globe Valve has a face-to-face flange dimensions per ANSI/ISA S75.03 standard and a constant total flow throughout full plug travel (3-way bodies). It offers best in class size, Cv range and close-off pressure, and a precise control for any application. Honeywell is the global leader in HVAC (heating, Ventilation, Air Conditioning) product. Honeywell invents and manufactures product for the HVAC industry. They have the world class products and services and solutions that work in million homes, buildings, and hundreds of gas and electric utilities worldwide

Product Details

Product: Globe
Manufacturer: Honeywell
Style: 3 Way
Trade Tools: HVAC
Use: Water
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VGF31LD25
Weight 3.40 lbs.

Product Features

  • 10 7/8 in. high x 7 1/2 in. wide x 9 3/8 in. deep
  • DN65
  • -7 C to +120 C
  • 20 F to 250 F
  • 1-3/8 in.
  • 69 psi
  • 475 kPa
  • 70 Cv
  • 60 kvs
  • Diverting, stem down to close AB-A
  • Globe Valve
  • 277 mm high x 177 mm wide x 241 mm deep
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Cast Iron ASTM A126 Class B
  • Stainless Steel
  • Linear (constant total)
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • 3/4 in.
  • 20 mm
  • 35 mm
  • 175 psig at 130 F (66 C)
  • Spring-loaded PTFE cone rings
  • Port A seat leakage: 0.05%; Port B seat leakage 0.1%
  • 1206 kPa at 66 C (130 F)
  • ML6984/ML7984; ML6420/21A/25; ML7420/21A/25; Q5020/DCA; Q5001/Modutrol IV Motor; MP953
  • Stem down to close AB-A
  • Flanged
  • Three-way
  • 2 1/2 in.
