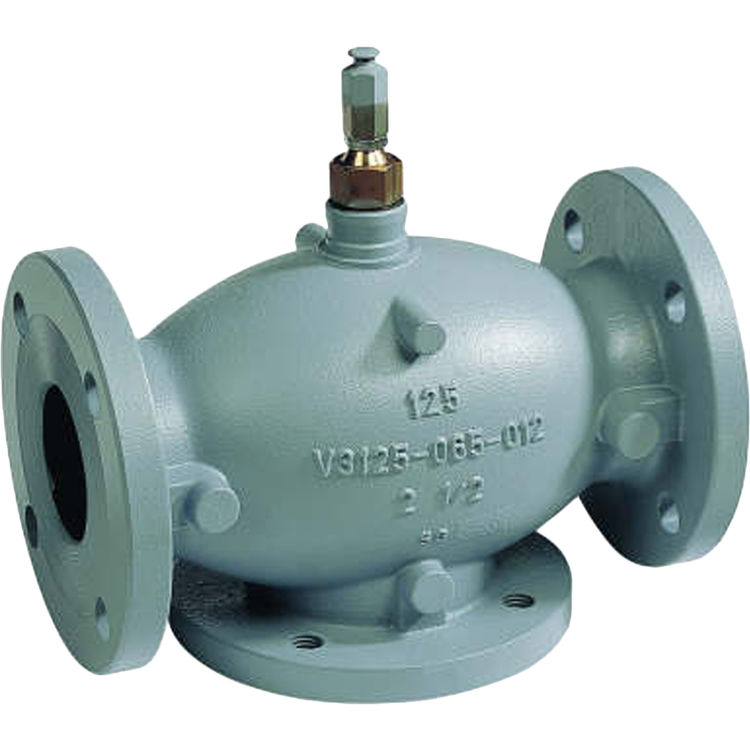

Honeywell VGF31LD60 3-Way divert Flange Globe Valve

SKU: 379742
Minimum Quantity: 1

$2,274.34/ea Free Shipping!

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$2,274.34/ea

About the Honeywell VGF31LD60

Honeywell VGF31LD60 3-Way 6 inches diverting Flange Globe Valve. This valve is an ANSI class 125 cast iron bodies with flanged end connections with linear flow. It is used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. This valve also has an accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control. It is made of stainless steel trim standard for long life span. This Honeywell VGF31LD60 3-Way 6 inches diverting Flange Globe Valve has a self-adjusting packing, steam inlet pressure up to 125 psig and 353 F maximum temperatures. It is a universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled modutrolâ„¢ motors and MN/MS series direct coupled actuators. The Honeywell VGF31LD60 3-Way 6 inches diverting Flange Globe Valve has a face-to-face flange dimensions per ANSI/ISA S75.03 standard and a constant total flow throughout full plug travel (3-way bodies). It offers best in class size, Cv range and close-off pressure, and a precise control for any application. Honeywell is the global leader in HVAC (heating, Ventilation, Air Conditioning) product. Honeywell invents and manufactures product for the HVAC industry. They have the world class products and services and solutions that work in million homes, buildings, and hundreds of gas and electric utilities worldwide

Product Details

Product: Globe
Manufacturer: Honeywell
Material: Cast iron
Use: Water
Type: Diverter Valve
Style: 3 Way
Size:
Electrical Voltage: 24 Volt
Connection Type: Flanged
Trade Tools: HVAC
Mpn # VGF31LD60
Weight 59.50 lbs.

Product Features

  • Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control.
  • Diverting, stem down to close AB-A
  • Globe Valve
  • Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators.
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Cast Iron ASTM A126 Class B
  • Stainless Steel
  • Linear (constant total)
  • Must be purchased separately
  • Meets ANSI 125 Standard
  • 125
  • DN150
  • 1 1/2 in.
  • 38 mm
  • 47.6 mm
  • Constant total flow throughout full plug travel
  • Spring-loaded PTFE cone rings
  • Port A seat leakage: 0.05%; Port B seat leakage 0.1%
  • Stainless steel trim standard for long life span
  • ML6421B; ML7421B; Q5001/Modutrol IV Motor; MP953
  • Stem down to close AB-A
  • Flanged
  • -7 C to +120 C
  • Three-way
  • 6 in.
  • 20 F to 250 F
  • 1-7/8 in.
  • 13 psi
  • 90 kPa
  • 380 Cv
  • 326 kvs
